Product Detailed Parameters
- Description：WG POWER AMP WR-28 26.5-40 GHZ U
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Frequency：26.5GHz ~ 40GHz
- P1dB：33.5dBm
- Gain：35dB
- Noise Figure：-
- RF Type：General Purpose
- Voltage - Supply：5V ~ 10V
- Current - Supply：4.8A
- Test Frequency：-
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Grade：-
- Qualification：-
Download product information
Overview

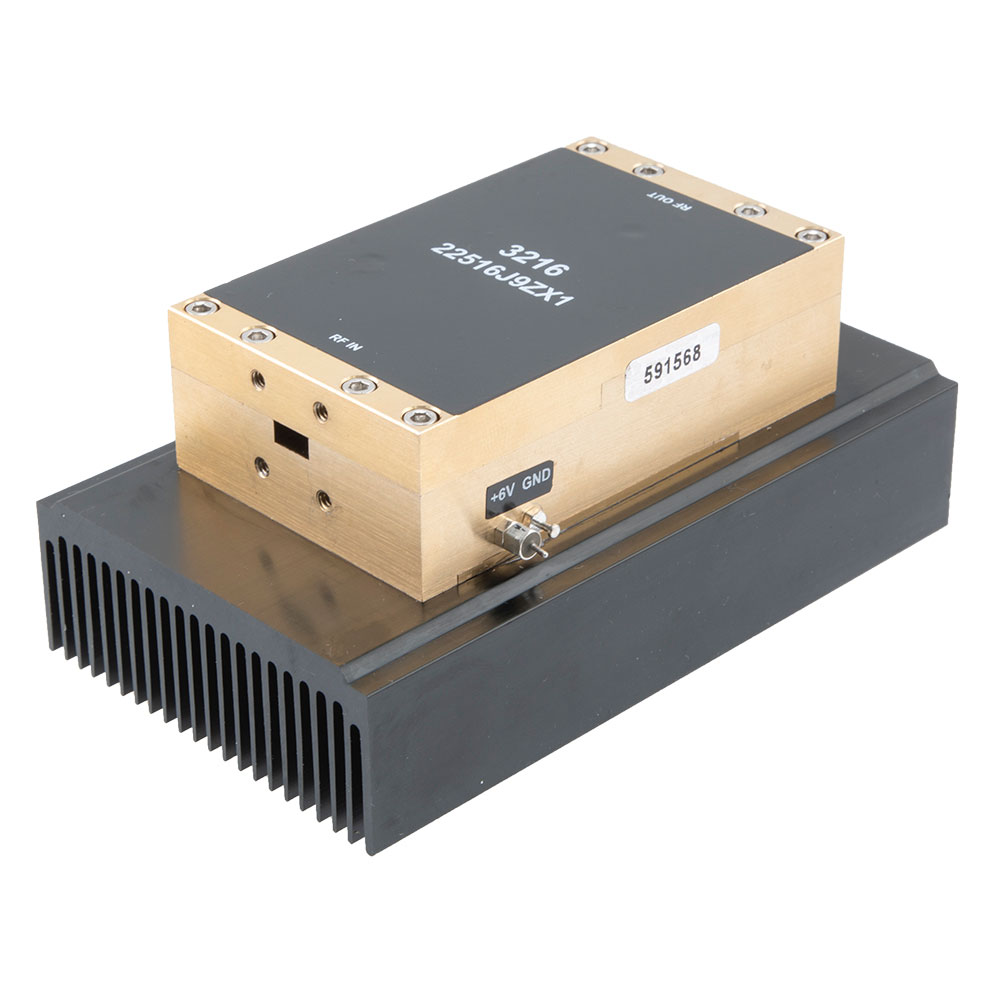

The FMWGA3216 is a WR-28 waveguide power amplifier manufactured by Fairview Microwave, designed for the Ka Band. It operates within a frequency range of 26.5 GHz to 40 GHz and provides a gain of 35 dB. The device delivers a saturated output power (Psat) of 34 dBm. It utilizes a UG-599/U flange interface for waveguide connections. The operating supply current is specified at 4.8 A.
Feature Summary
- Utilizes WR-28 waveguide architecture for high-frequency signal amplification
- Provides high saturated output power suitable for demanding RF applications
- Features standardized UG-599/U flange interface for secure mechanical connection
Applications
- Ka Band radar systems
- Point-to-point microwave communication links
- Electronic warfare subsystems
- Satellite ground station uplinks
Procurement Notes
Verify that the specific unit matches the WR-28 waveguide specification and UG-599/U flange configuration. Confirm operational requirements align with the 26.5 GHz to 40 GHz frequency range and 4.8 A supply current. Ensure compatibility with existing system interfaces before finalizing procurement.
Selection Notes
Select this component when high output power in the Ka Band is required. The 34 dBm Psat supports long-range transmission needs. The 35 dB gain reduces the requirement for preceding low-noise amplification stages. Waveguide design ensures low loss at these frequencies compared to coaxial alternatives.
Part Context
This model belongs to Fairview Microwave's line of waveguide power amplifiers. It complements other models like the FMWGA3217, which targets higher Q Band frequencies. The series provides modular solutions for millimeter-wave applications requiring robust power handling and precise frequency coverage.
Replacement Considerations
Direct substitutes include the FMWGA3217 for higher frequency Q Band operations. Alternative waveguide amplifiers from other manufacturers must match the WR-28 interface and 34 dBm power output. Verify that replacement units support the same 4.8 A supply current.
