Product Detailed Parameters
- Description：WG TERMINATION WRD-650 6.5-18 GH
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Termination
- Frequency：6.5GHz ~ 18GHz
- RF Type：General Purpose
- Secondary Attributes：1W
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

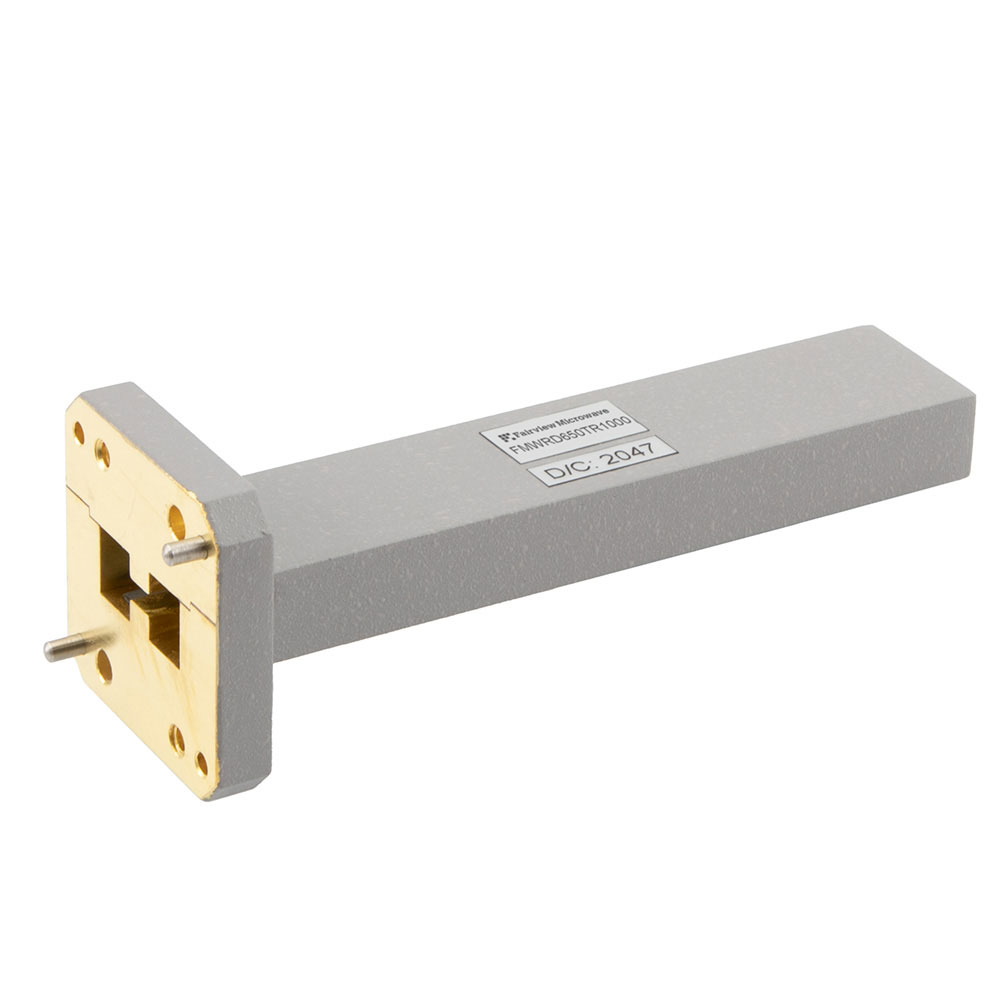

The FMWRD650TR1000 is a WRD-650 double-ridge waveguide termination manufactured by Fairview Microwave. It operates within a frequency range of 6.5 GHz to 18 GHz and supports an average power handling capacity of 1 Watt. The component features a UG style square cover flange for secure mounting. Constructed as a high-performance load, it is designed to absorb RF energy in waveguide systems. The unit is packaged individually in a bag.
Feature Summary
- Double-ridge waveguide design for broad bandwidth operation
- UG style square cover flange for standardized mounting
- High-performance load construction for efficient energy absorption
Applications
- Waveguide system testing and measurement setups
- RF signal path termination to prevent reflections
- Laboratory equipment requiring stable waveguide loads
Procurement Notes
Verify the specific model number FMWRD650TR1000 against official Fairview Microwave documentation to confirm the 1 Watt power rating and 6.5-18 GHz frequency range. Ensure compatibility with WRD-650 waveguide dimensions and UG flange standards before integration. Confirm packaging details match project requirements.
Selection Notes
Select this component when a WRD-650 compatible termination is required for frequencies between 6.5 GHz and 18 GHz. Consider the 1 Watt average power limit for thermal management. Verify that the UG square cover flange interface matches existing waveguide hardware. This part is suitable for general-purpose waveguide applications requiring reliable signal absorption.
Part Context
This termination belongs to Fairview Microwave's family of high-performance waveguide loads. It utilizes the standard WRD-650 double-ridge waveguide format. The UG style flange ensures interoperability with common waveguide components. It serves as a passive component for managing RF energy in microwave circuits.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided data. Consult Fairview Microwave technical support for equivalent models if this specific part is unavailable.
