FMXC7001

Overview

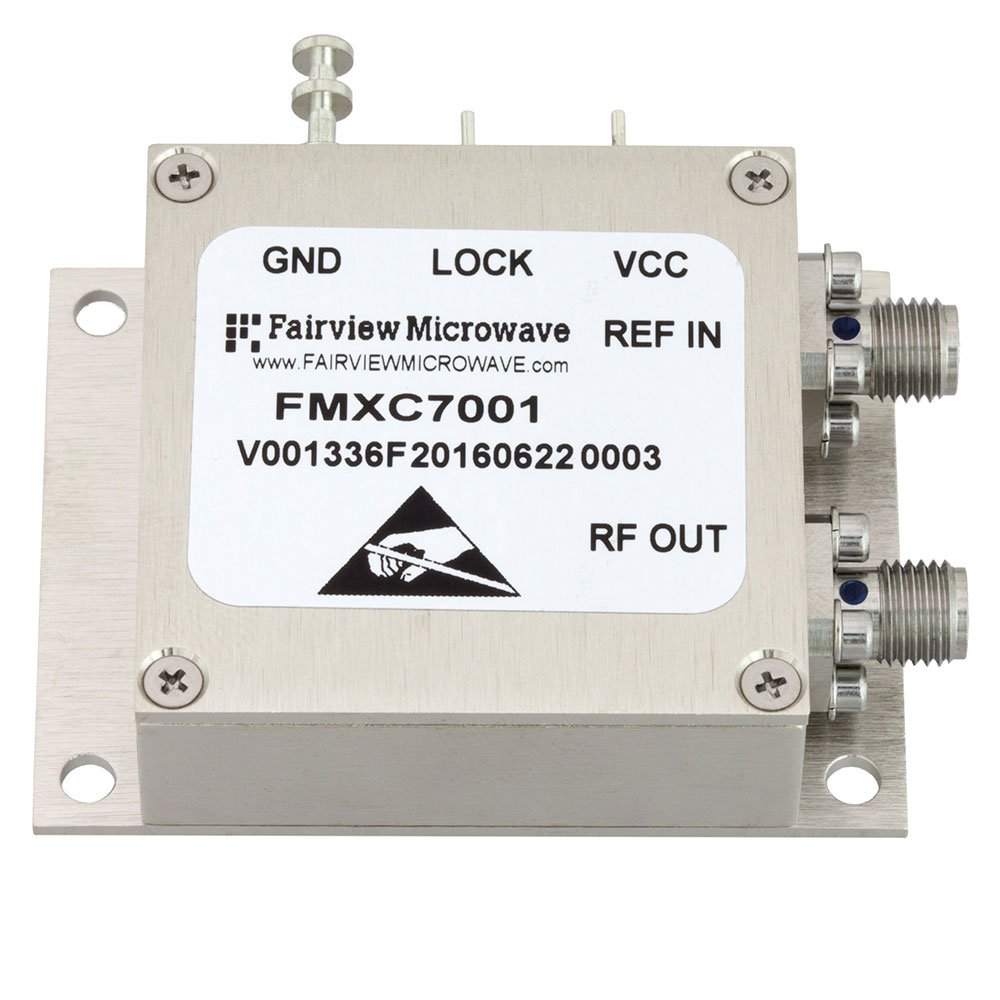

The FMXC7001 is a phase-locked loop (PLL) oscillator manufactured by Fairview Microwave. It operates at an output frequency of 1 GHz and is designed for general-purpose RF applications. The device functions within a temperature range of -30°C to +70°C. It is supplied in bag packaging and maintains active product status, providing a stable signal source for electronic systems requiring precise frequency generation.

Feature Summary

• Phase-locked loop architecture for stable frequency generation
• Fixed 1 GHz output frequency capability
• Operates within industrial temperature limits

Applications

• General-purpose RF signal generation
• Electronic test equipment reference sources
• Communication system local oscillators

Procurement Notes

Verify the specific datasheet version with Fairview Microwave or authorized distributors to confirm current electrical tolerances and pin configurations. Ensure environmental specifications align with the target application's thermal requirements before finalizing procurement orders.

Selection Notes

Select this component when a fixed 1 GHz PLL oscillator is required for general RF tasks. Consider the -30°C to +70°C operating range against system thermal constraints. Verify compatibility with existing circuit designs regarding power supply and interface requirements.

Part Context

Fairview Microwave specializes in high-quality RF and microwave components, including connectors, cables, and integrated circuits. The FMXC7001 fits within their portfolio of active RF solutions, supporting industries that require reliable signal integrity and precise frequency control in compact form factors.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult manufacturer guidelines for potential cross-references.
