FMXP5006

Overview

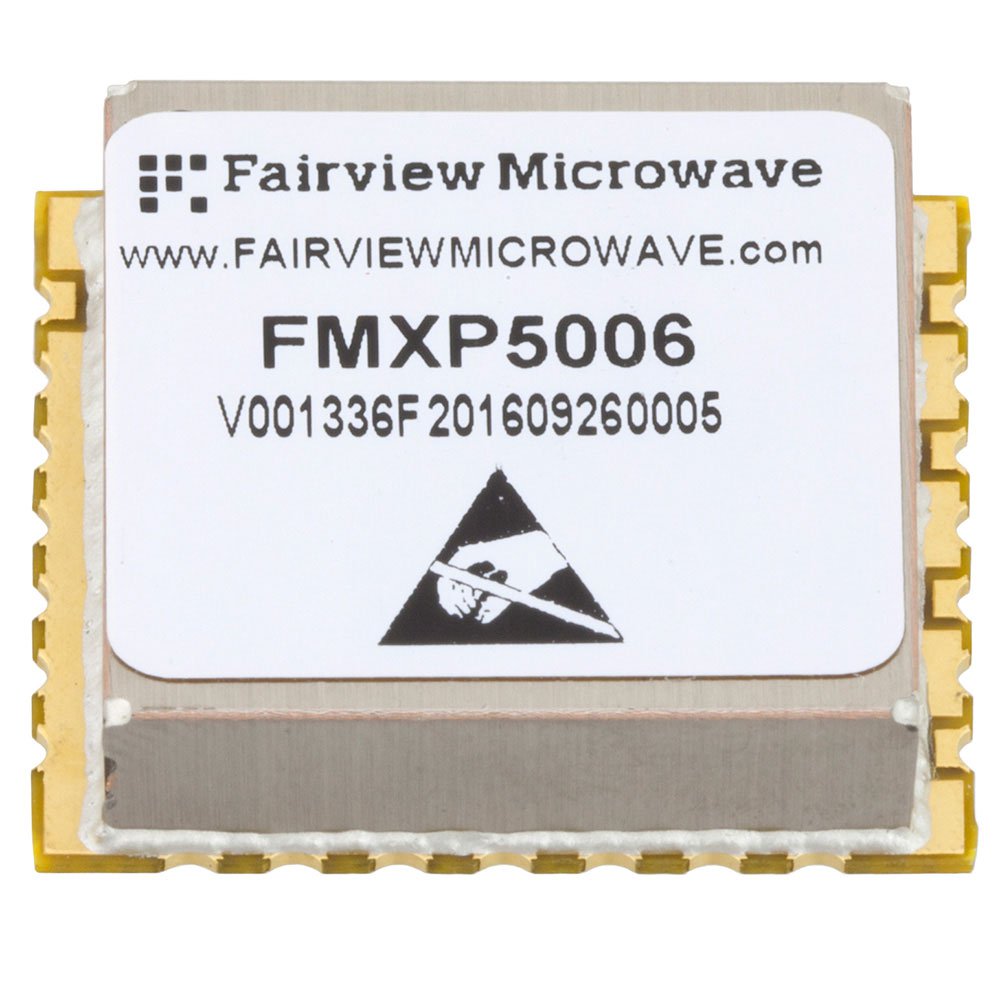

The FMXP5006 is a general-purpose RF oscillator module manufactured by Fairview Microwave. It operates at a fixed frequency of 2 GHz and requires a 5 VDC supply voltage. The device draws an operating supply current of 25 mA and is housed in a 28-SMD package. It functions as a Phase Locked Loop (PLL) oscillator, supporting operation within a temperature range of -30°C to +70°C.

Feature Summary

• Generates a stable 2 GHz output signal using Phase Locked Loop technology
• Designed for general-purpose radio frequency applications
• Operates on a standard 5 VDC power supply with low current consumption

Applications

• General-purpose RF signal generation
• Phase locked loop circuit integration
• Electronic systems requiring 2 GHz reference frequencies

Procurement Notes

Verify the specific package variant and thermal specifications against the official Fairview Microwave datasheet before procurement. Confirm that the 28-SMD form factor aligns with your PCB layout requirements. Ensure the operating temperature range meets your environmental conditions. Cross-reference the part number to avoid confusion with similar models from other manufacturers.

Selection Notes

Select this component when a fixed 2 GHz PLL oscillator is required for general RF tasks. Consider the 28-SMD package size for surface mount assembly compatibility. Evaluate the 5 VDC supply requirement against your system's power architecture. Verify thermal performance within the specified -30°C to +70°C range for your intended application environment.

Part Context

The FMXP5006 belongs to the RF IC and miscellaneous modules category provided by Fairview Microwave. It serves as a specialized active component for generating precise radio frequency signals. This module integrates phase locking capabilities into a compact surface-mount format, distinguishing it from discrete oscillator components or broader RF amplifier families.

Replacement Considerations

No public substitute part numbers are documented for the FMXP5006. Consult the manufacturer for direct equivalents if availability is constrained.
