FN1330002

Oscillators Overview

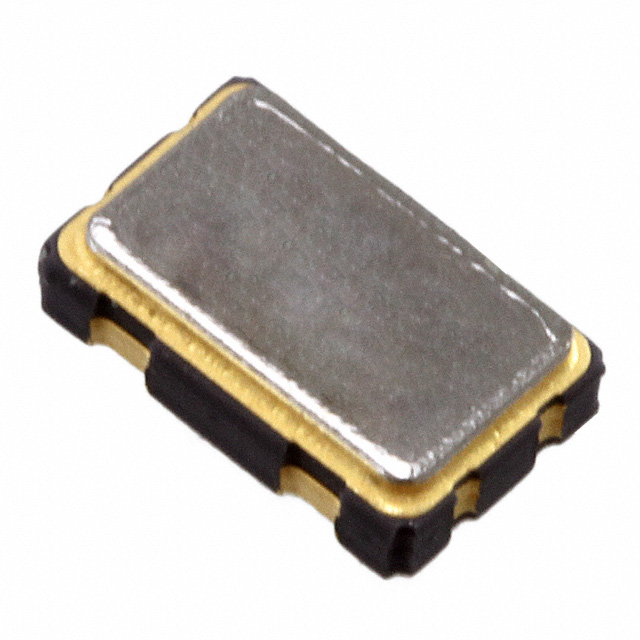

The FN1330002 is a standard crystal oscillator (XO) manufactured by Diodes Incorporated, housed in a SEAM7050 surface-mount package. It operates at a nominal frequency of 13.3333 MHz with CMOS output logic. The device supports a supply voltage range of 1.8V to 3.3V and functions within an operating temperature range of -20°C to +70°C. Key electrical characteristics include a maximum load capacitance of 15pF and a typical current consumption of 4mA when enabled. The component is RoHS compliant and lead-free, designed for reliable clock signal generation in digital systems.

Oscillators Feature Summary

• Generates precise 13.3333 MHz clock signals using CMOS output logic
• Operates on low voltage supplies ranging from 1.8V to 3.3V
• Features compact SEAM7050 surface-mount packaging for automated assembly

Oscillators Applications

• Digital signal processing systems requiring stable timing references
• Communication interfaces utilizing 13.3333 MHz clock sources
• Embedded microcontroller boards needing low-power clock generation

Oscillators Procurement Notes

Verify the specific supply voltage requirement matches your system design, as the device supports both 1.8V and 3.3V rails. Confirm that the -20°C to +70°C operating temperature range aligns with your environmental constraints. Ensure the SEAM7050 footprint dimensions are compatible with your PCB layout guidelines before finalizing the bill of materials.

Oscillators Selection Notes

Select this component when a fixed 13.3333 MHz frequency is required for CMOS-based digital circuits. Consider the narrow operating temperature range compared to industrial-grade alternatives if extreme environments are involved. The low current consumption makes it suitable for battery-powered or energy-efficient applications where power management is critical.

Oscillators Part Context

This part belongs to Diodes Incorporated's family of standard crystal oscillators, which provide stable clock signals for various electronic applications. These components replace discrete crystal and oscillator circuit designs, offering a compact solution for timing needs in consumer electronics, computing hardware, and industrial control systems requiring precise synchronization.

Oscillators Replacement Considerations

Cross-reference with other 13.3333 MHz CMOS oscillators in the SEAM7050 package. Verify pin compatibility and electrical specifications such as load capacitance and supply voltage tolerance before substitution.
