Product Detailed Parameters
- Description：CAP FEEDTHRU 4700PF 1KV AXIAL
- Series：FN 751X
- Mfr：Schaffner EMC Inc.
- Package：Tray
- Voltage - Rated：1000V (1kV)
- Current：16 A
- Operating Temperature：-40°C ~ 100°C
- Mounting Type：-
- Package / Case：Axial - Threaded Terminals
- Size / Dimension：0.864" Dia x 2.480" L (21.95mm x 63.00mm)
- Capacitance：4700 pF
- Tolerance：±20%
- DC Resistance (DCR) (Max)：0.5mOhm (Typ)
- Insertion Loss：-
- Temperature Coefficient：-
- Ratings：Y2
- Height (Max)：-
- Thread Size：M12x1
Download product information
Overview

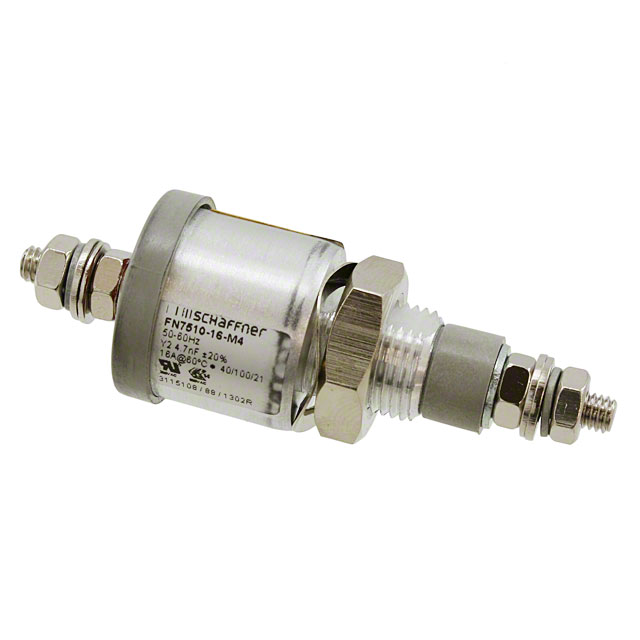

The Schaffner FN7510-16-M4 is an AC feedthrough capacitor from the FN751X series, rated for 16 A current and 1000 VDC. It features a threaded M4 stud terminal with a specified torque of 1.2 Nm. The component operates within a temperature range of -40°C to +100°C and exhibits a leakage current of 0.44 mA at 250VAC/50Hz. Designed as a Y2 circuit type EMI filter, it provides effective electromagnetic interference suppression in panel-mounted configurations.
Feature Summary
- Provides effective electromagnetic interference suppression through feedthrough capacitor technology
- Features a robust threaded stud terminal design for secure panel mounting
- Engineered for high voltage insulation capabilities suitable for demanding environments
Applications
- Electromagnetic interference suppression in electronic equipment
- Power line filtering applications requiring feedthrough capacitor solutions
- Panel-mounted installations for industrial control systems
Procurement Notes
Verify the manufacturer designation carefully, as sources list both TE Connectivity / Schaffner and Schaffner EMC Inc. Confirm the specific part number FN7510-16-M4 against official datasheets to ensure compatibility with your system requirements. Check for any recent product change notices or obsolescence warnings directly from the manufacturer before finalizing procurement decisions.
Selection Notes
Select this component when a 16 A rated feedthrough capacitor is required for EMI suppression. Ensure the installation environment supports the specified operating temperature range of -40°C to +100°C. Verify that the M4 threaded terminal interface matches the mechanical constraints of the enclosure panel. Consider the Y2 safety classification if isolation requirements dictate specific insulation standards.
Part Context
This component belongs to the FN751X series of AC feedthrough capacitors manufactured by Schaffner. These filters are designed for high-performance electromagnetic interference suppression in various industrial and commercial applications. The series offers different current ratings and terminal options to suit diverse mounting and electrical requirements.
Replacement Considerations
Cross-reference with other parts in the FN751X series for alternative current ratings or terminal configurations. Verify mechanical dimensions and electrical specifications against potential substitutes to ensure functional equivalence without compromising system performance or safety ratings.
