FN7511-100-M8

Overview

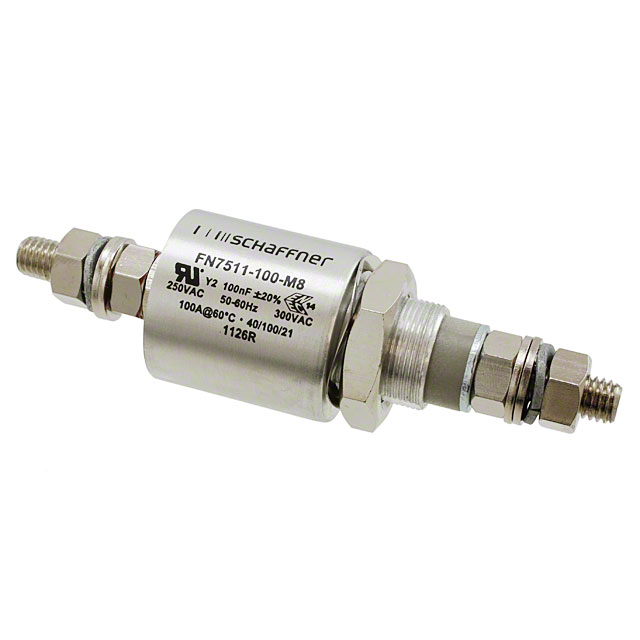

The Schaffner FN7511-100-M8 is a single-phase EMI feedthrough capacitor from the FN 751X series. It features a capacitance of 0.1 µF with a voltage rating of 300 VAC and a current handling capacity of 100 A. The component utilizes axial threaded terminals for panel mounting and operates within a temperature range of -40°C to +100°C.

Feature Summary

• Provides effective electromagnetic interference suppression through high-capacitance feedthrough design
• Supports high-current applications up to 100 A with robust thermal stability
• Features durable axial threaded terminal construction for secure panel integration

Applications

• Computer server power filtering
• Medical equipment EMC compliance
• Industrial control system noise reduction

Procurement Notes

Verify the specific datasheet version for the FN7511-100-M8 to confirm exact electrical tolerances and mechanical dimensions. Ensure compatibility with existing panel cutouts and threading specifications before procurement. Cross-reference manufacturer documentation for any recent design changes or compliance updates.

Selection Notes

Select this component when high current handling (100 A) and significant capacitance (0.1 µF) are required in a compact panel-mount form factor. The 300 VAC rating suits standard industrial and medical AC power lines. Consider the M8 thread size for mounting hardware compatibility.

Part Context

This part belongs to the Schaffner FN 751X series, which specializes in high-performance EMI feedthrough capacitors. These components are designed for demanding environments requiring reliable noise suppression in power distribution systems for sensitive electronic equipment.

Replacement Considerations

Direct substitutes may include other FN 751X variants with similar capacitance and current ratings, such as FN7512 or FN7513 series parts, provided the voltage rating and terminal configuration match the application requirements.
