FN7560-10-M3

Overview

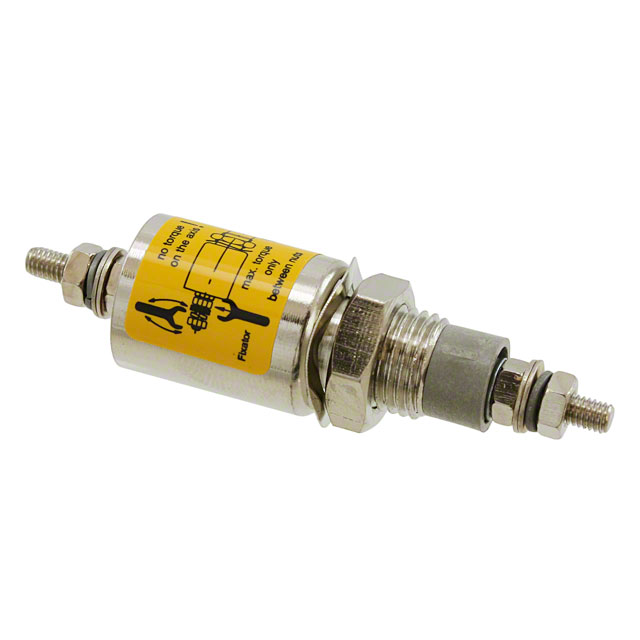

The FN7560-10-M3 is a single-channel LC Pi EMI feed-through filter manufactured by TE Connectivity Schaffner. It features an axial threaded terminal package designed for bolt installation. The component has a rated voltage of 650V DC and 130V AC, with a current rating of 10 A. Key electrical parameters include an inductance of 0.5 nH, capacitance of 10 nF (0.01 µF), and typical channel resistance of 0.8 mOhm. It operates within a temperature range of -40°C to 100°C.

Feature Summary

• Provides effective electromagnetic interference suppression through LC Pi topology
• Features low parasitic inductance for high-frequency noise attenuation
• Utilizes robust axial threaded terminals for secure mechanical mounting

Applications

• Computer server power lines
• Medical equipment signal paths
• Mobile device data lines

Procurement Notes

Verify the specific ordering suffix M3 corresponds to the required terminal configuration and packaging format. Confirm that the 130V AC / 650V DC ratings align with the system's operational voltage requirements. Ensure the 10 A current capacity meets the load specifications. Check for any RoHS compliance declarations if environmental regulations apply to the final assembly.

Selection Notes

Select this component when low inductance is critical for high-frequency filtering applications. The 10 nF capacitance offers a balance between noise suppression and leakage current considerations. The threaded terminal design is suitable for chassis or panel mounting where vibration resistance is necessary. Verify space constraints against the physical dimensions provided in the datasheet.

Part Context

This part belongs to the FN7560 series of capacitor feed-through filters from Schaffner. These components are engineered for compact EMI suppression in sensitive electronic environments. The series is commonly integrated into systems requiring reliable noise reduction without significant signal degradation.

Replacement Considerations

Public records indicate this part number may be discontinued as of September 2013. Consult the manufacturer for active substitute part numbers within the FN7560 series or equivalent LC Pi feed-through filters with matching 10 A and 10 nF specifications.
