FN7563-200-M10

Overview

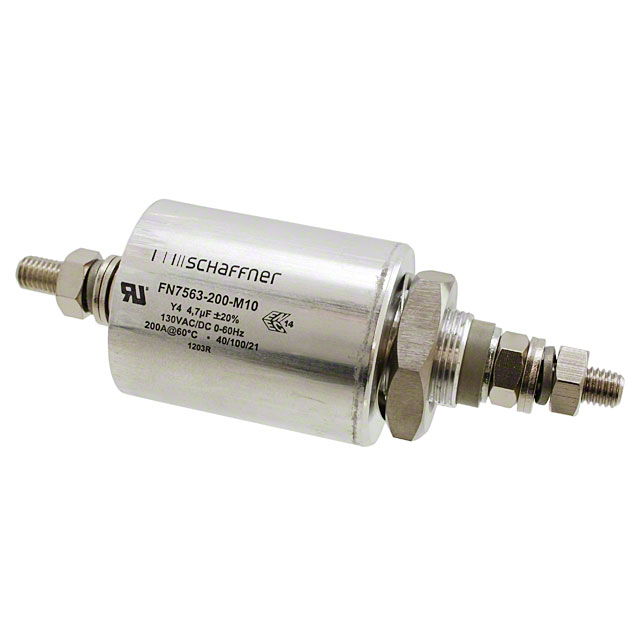

The FN7563-200-M10 is a single-phase feed-through capacitor filter manufactured by Schaffner EMC Inc. It features axial threaded terminals and RoHS compliance. Key electrical specifications include a rated voltage of 130 VAC/130 VDC, a continuous current rating of 200 A, and a capacitance value of 4700 nF (4.7 µF). The device supports a maximum voltage of 650 V and exhibits a typical resistance of 0.14 mOhm.

Feature Summary

• Provides high-current filtering capability for electromagnetic interference suppression in power lines.
• Utilizes a robust feed-through design with threaded terminals for secure mechanical mounting.
• Constructed to meet RoHS compliance standards for restricted hazardous substances.

Applications

• Computer server power distribution systems
• Medical equipment power interfaces
• Industrial power line filtering

Procurement Notes

Verify the specific part number against official manufacturer documentation to confirm current availability status. Check for any updated environmental compliance certifications or alternative pin configurations that may have been introduced in recent production revisions. Ensure compatibility with existing panel cutouts and terminal requirements before finalizing procurement decisions.

Selection Notes

Select this component when high continuous current handling up to 200 A is required alongside effective EMI attenuation. The axial threaded terminal style is suitable for applications requiring direct panel mounting. Consider the 4700 nF capacitance value for appropriate filtering characteristics in single-phase AC or DC power circuits where low impedance paths are necessary.

Part Context

This component belongs to the FN7563 series of feed-through filters from Schaffner EMC Inc. These devices are designed for general-purpose electromagnetic compatibility applications. The series offers various current ratings and capacitance values to suit different power line requirements while maintaining compact form factors suitable for dense electronic assemblies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult official distributor databases or manufacturer catalogs for cross-reference information regarding equivalent components with similar electrical ratings and mounting styles.
