FN7563-63-M6

Overview

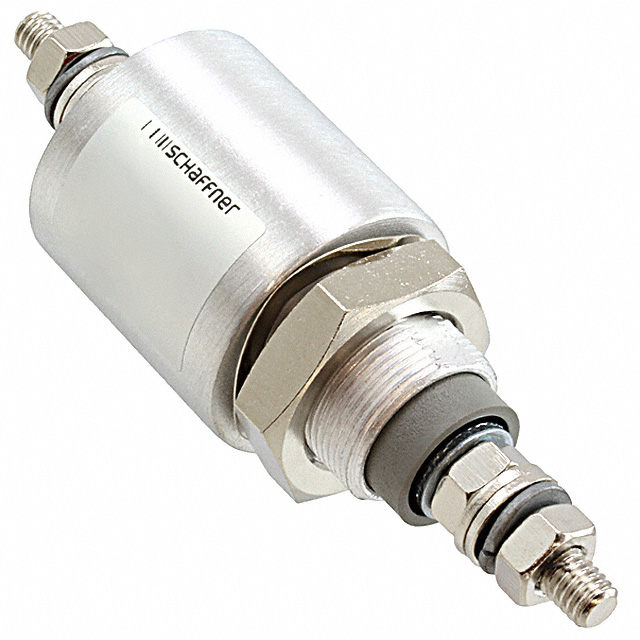

The FN7563-63-M6 is a DC feedthrough capacitor from the Schaffner FN756X series, designed for electromagnetic interference suppression. It features a capacitance of 0.47 µF with a tolerance of 20%, rated for 63 A current and 130 VAC voltage. The component utilizes M6 threaded terminals for axial mounting and operates within a temperature range of -40°C to +100°C. Its low resistance of approximately 0.43 mΩ supports high-current applications in medical equipment and computer servers.

Feature Summary

• Provides effective EMI/RFI filtering through high-capacitance feedthrough design
• Supports high continuous current loads suitable for demanding power lines
• Features robust axial threaded terminal construction for secure panel integration

Applications

• Medical equipment power systems
• Computer server power distribution
• DC feedthrough filtering applications

Procurement Notes

Verify the specific suffix and manufacturer designation when sourcing, as TE Connectivity and Schaffner branding may appear interchangeably on documentation. Confirm RoHS compliance status directly with the supplier or datasheet, as regulatory declarations can vary by production batch. Ensure the M6 thread specification matches your panel cutout requirements before finalizing procurement orders.

Selection Notes

Select this component for DC circuits requiring significant capacitance and high current handling capabilities. The M6 threaded interface dictates the mechanical mounting strategy, requiring compatible nuts and washers. Consider the 130V AC rating relative to your system's peak voltages to ensure adequate safety margins during operation.

Part Context

This part belongs to the FN756X series of DC feedthrough capacitors manufactured by Schaffner, now part of TE Connectivity. These components are engineered for high-performance noise suppression in critical infrastructure. The series is widely recognized in industrial and medical sectors for reliability under high-stress electrical conditions.

Replacement Considerations

FN7561-63-M6 is a documented alternative within the same series offering similar current ratings but potentially different capacitance values. Verify electrical parameters against the original design requirements before substitution.
