Product Detailed Parameters
- Description：NOISE GEN 10 MHZ - 2 GHZ 15 VDC
- Series：-
- Mfr：Fairview Microwave
- Package：Bag
- Function：Noise Source
- Frequency：10MHz ~ 2GHz
- RF Type：Radar
- Secondary Attributes：SMA Connectors
- Mounting Type：Chassis Mount
- Package / Case：Module, SMA Connectors
- Supplier Device Package：-
- Grade：-
- Qualification：-
Download product information
Overview

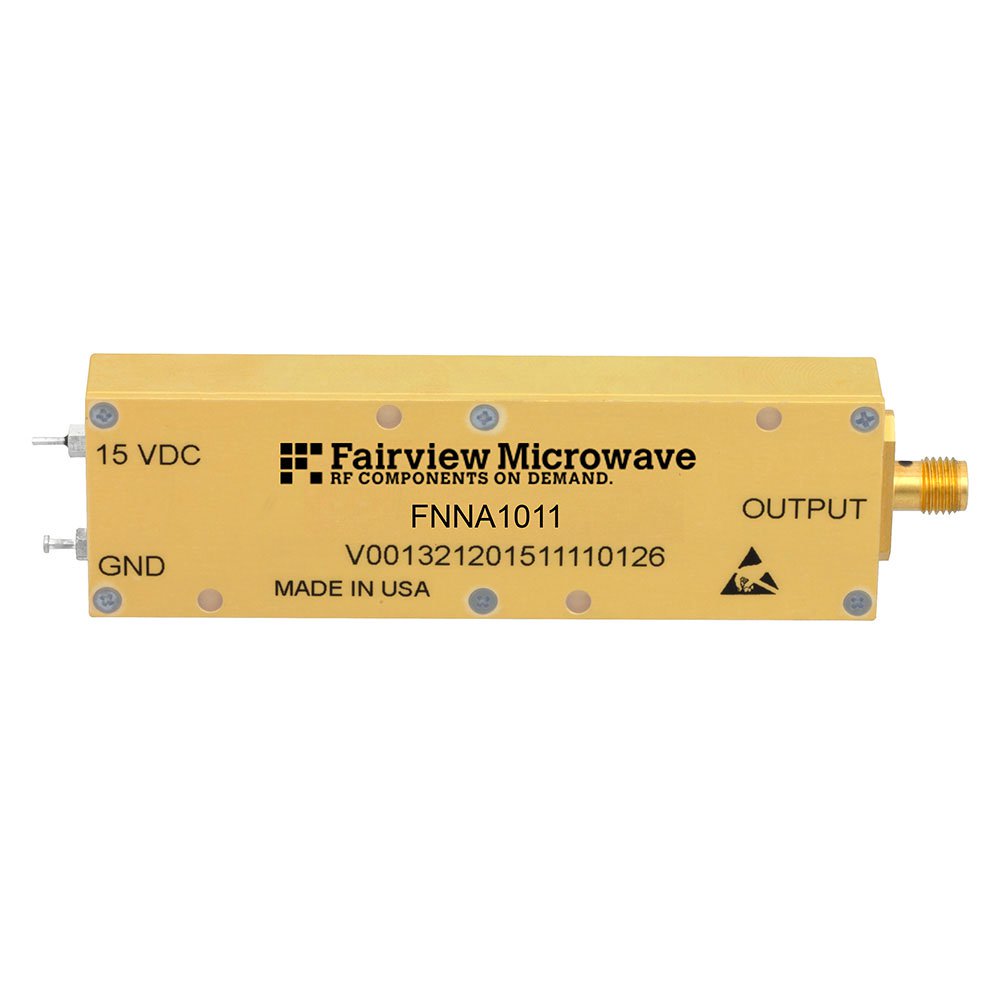

The FNNA1011 is an amplified noise source module manufactured by Fairview Microwave, designed for radar applications. It operates within a frequency range of 10 MHz to 2 GHz and utilizes SMA connectors for interface connectivity. The component functions as a specialized RF integrated circuit module intended to provide calibrated noise signals for testing and measurement purposes in electronic systems.
Feature Summary
- Amplified noise source functionality for signal generation
- Operates across a wide frequency spectrum from 10 MHz to 2 GHz
- Equipped with SMA connectors for standard interfacing
Applications
- Radar system testing and calibration
- RF component characterization
- Receiver sensitivity analysis
Procurement Notes
Verify the specific datasheet version and connector polarity before procurement. Confirm that the SMA interface matches the test equipment requirements. Ensure the operating frequency range aligns with the intended application bandwidth. Check for any environmental ratings if deployment conditions are extreme.
Selection Notes
Select this module when a broadband noise source is required for frequencies up to 2 GHz. Consider the SMA interface compatibility with existing test setups. Evaluate the need for amplification features to ensure sufficient signal levels for downstream components during testing procedures.
Part Context
This component belongs to the category of RF miscellaneous ICs and modules produced by Fairview Microwave. It serves as a dedicated tool for generating noise signals in radar and communication system evaluations, distinct from passive attenuators or active amplifiers found in other product lines.
Replacement Considerations
No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with existing test fixtures before considering alternative sources.
FAQ
What is the operating frequency range of the FNNA1011?
The FNNA1011 operates within a frequency range of 10 MHz to 2 GHz.
What type of connectors does the FNNA1011 use?
The module is equipped with SMA connectors for interface connectivity.
