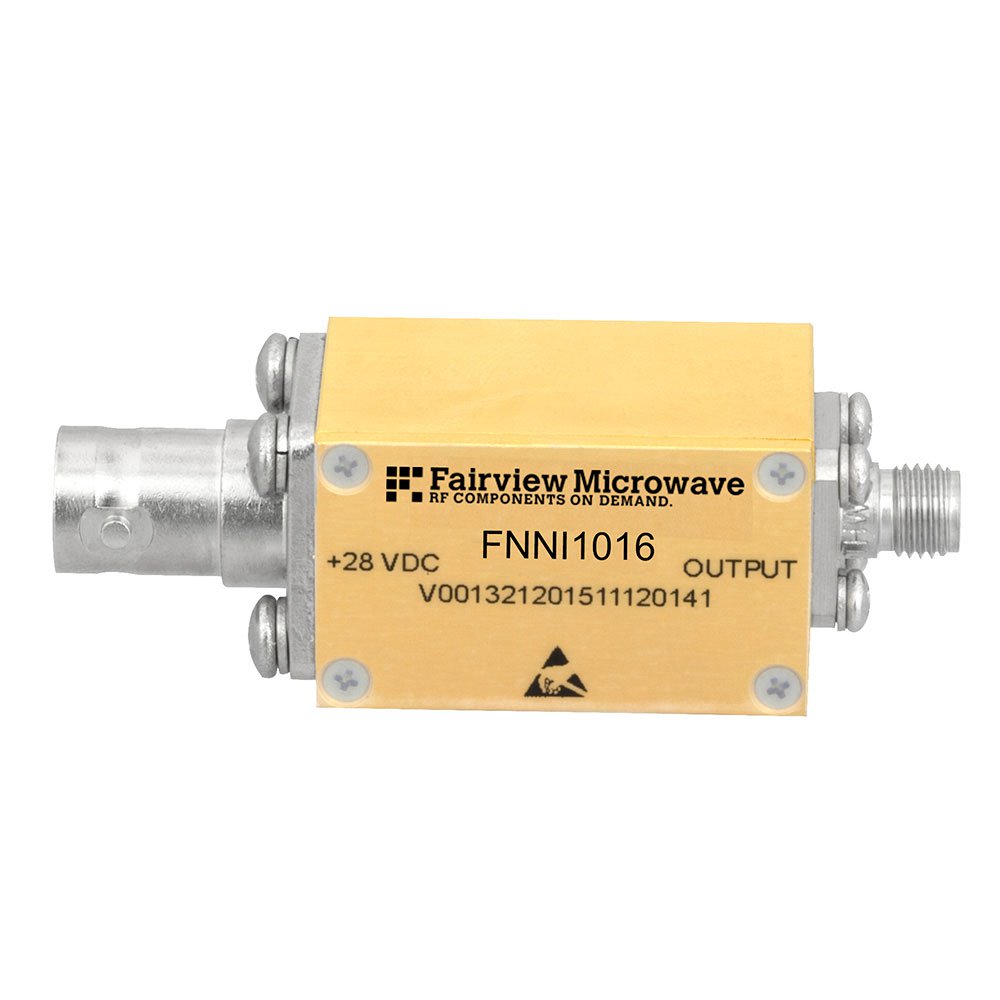

FNNI1016

$1,509.52

Description：NOISE GEN 10700 MHZ - 12.7 GHZ 2
Series：-
Mfr：Fairview Microwave
Package：Bag

SKU:975a1430e0ee Category: RF Misc ICs and Modules Brand: Fairview Microwave

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：NOISE GEN 10700 MHZ - 12.7 GHZ 2
Series：-
Mfr：Fairview Microwave
Package：Bag
Function：Noise Source
Frequency：10.7GHz ~ 12.7GHz
RF Type：802.11ac, ATE, Radar
Secondary Attributes：SMA Connectors
Mounting Type：Chassis Mount
Package / Case：BNC In-Line Module
Supplier Device Package：-
Grade：-
Qualification：-

Download product information

FNNI1016

Overview

The FNNI1016 is an SMA calibrated integral isolator noise source module manufactured by Fairview Microwave. It operates within a frequency range of 10.7 GHz to 12.7 GHz and provides an excess noise ratio (ENR) output of 30 dB. The device requires a +28 VDC power supply for operation. Designed as a specialized RF component, it integrates isolation capabilities with noise generation functions. The unit is packaged individually in a bag and weighs approximately 1.021 kg.

Feature Summary

Integrates calibrated noise source functionality with an internal isolator
Provides high excess noise ratio output for precise signal testing
Operates on standard DC voltage supply requirements

Applications

Automated Test Equipment (ATE) calibration
Radar system performance verification
Wireless communication link testing

Procurement Notes

Verify the specific datasheet version before procurement to ensure compatibility with current design specifications. Confirm that the required +28 VDC power supply aligns with existing test infrastructure. Check regional availability status as distribution may be restricted in certain areas. Ensure SMA interface connectors match the receiving equipment ports.

Selection Notes

Select this module when a calibrated noise source with integrated isolation is required for S-parameter measurements. The 30 dB ENR value supports accurate noise figure analysis in the specified Ku-band range. Consider the SMA interface type for direct connection to compatible test receivers. Evaluate the physical weight and form factor for integration into existing test setups.

Part Context

This component belongs to the RF Isolators product category from Fairview Microwave. It serves as a specialized tool for characterizing receiver sensitivity and noise performance. The module combines noise generation and isolation in a single compact unit, simplifying test bench configurations compared to using separate components.
