FO5HSCBE24.576-T1

Oscillators Overview

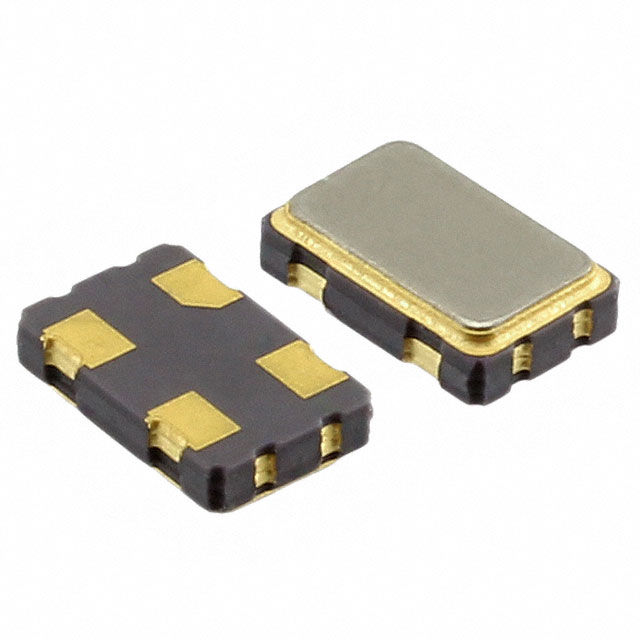

The FO5HSCBE24.576-T1 is a surface-mount crystal oscillator manufactured by Fox Electronics, operating at a frequency of 24.576 MHz. It utilizes HCMOS output logic and requires a 3.3V supply voltage. The device features a frequency stability of ±50ppm and supports a standby function for power-down control. It operates within a temperature range of -10°C to +70°C. The maximum supply current is 15mA, with a disabled current of 10µA. The component is housed in a 4-SMD, no-lead package measuring 5.00mm x 3.20mm x 1.30mm.

Oscillators Feature Summary

• Supports standby mode for power-down control
• HCMOS output logic compatible with standard digital interfaces
• Surface mount design in a compact 4-SMD package

Oscillators Applications

• Industrial gateway clock link designs
• General industrial electronic systems
• Consumer electronic devices requiring stable timing

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure correct packaging configuration, as variants exist for tape and reel or cut tape formats. Confirm that the required frequency stability of ±50ppm meets the system requirements, as other series options offer tighter tolerances. Ensure the operating temperature range of -10°C to +70°C is sufficient for the intended application environment before finalizing procurement decisions.

Oscillators Selection Notes

Select this component when a 24.576 MHz HCMOS signal is required from a 3.3V source. It serves as an upgrade replacement for older F510L, F540L, F530L, and F550L series oscillators. Consider the ±50ppm stability limit and the -10°C to +70°C temperature range during selection. This part is suitable for applications where moderate stability is acceptable and low standby current is beneficial.

Oscillators Part Context

This oscillator belongs to the FO5HS series, which provides various voltage and stability options in a 5032 footprint. It replaces legacy models like the F510L and F540L. The series supports multiple supply voltages including 1.8V, 2.5V, 3.3V, and 5.0V across different part numbers. The FO5HSCBE24.576-T1 specifically targets the 3.3V domain with standard stability specifications.

Oscillators Replacement Considerations

Public confirmed substitute part numbers include FO5HSCDF24.576-T1.
