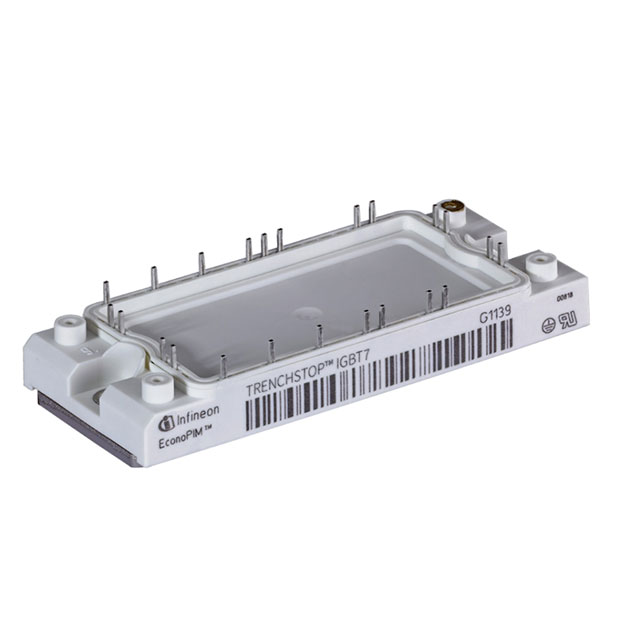

FP100R12N2T7B11BPSA1

$71.99

Description：LOW POWER ECONO
Series：EconoPIM™ 2

SKU:bea588b0b38c Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.5V @ 15V, 100A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：100 A
Power - Max：-
Current - Collector Cutoff (Max)：10 µA
Input Capacitance (Cies) @ Vce：21.7 nF @ 25 V

Download product information

FP100R12N2T7B11BPSA1

Overview

The FP100R12N2T7B11BPSA1 is a TRENCHSTOP IGBT7 EconoPIM module with a 1200 V collector-emitter voltage and 100 A nominal continuous DC collector current. It integrates emitter-controlled diodes and an NTC thermistor, utilizing PressFIT technology for mounting. The device supports overload operation up to 175°C junction temperature and features low saturation voltage characteristics.

Feature Summary

Integrates TRENCHSTOP IGBT7 and emitter-controlled diodes within a single package
Includes an integrated NTC temperature sensor for thermal monitoring
Utilizes PressFIT contact technology for reliable connection
Features an aluminum oxide substrate with low thermal resistance

Applications

Servo drives
Auxiliary inverters
Motor drives

Procurement Notes

Verify the specific ordering suffix B11 against official Infineon documentation to confirm exact configuration details. Ensure that the component meets all relevant industrial qualification standards, including IEC 60747, 60749, and 60068, before finalizing procurement decisions.

Selection Notes

Select this module for applications requiring high power density and robust thermal performance. Consider the 1200 V rating and 100 A current capacity when designing inverter circuits. Verify compatibility with PressFIT assembly processes and ensure adequate heatsinking to manage thermal resistance effectively.

Part Context

This component belongs to the Infineon EconoPIM series, designed for industrial power electronics. It utilizes the seventh generation of TRENCHSTOP IGBT technology, offering improved switching characteristics compared to previous generations. The module is specifically engineered for three-phase inverter configurations.

Replacement Considerations

Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains identical voltage ratings, current capacities, and mechanical footprint specifications.
