Product Detailed Parameters
- Description：LOW POWER EASY
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

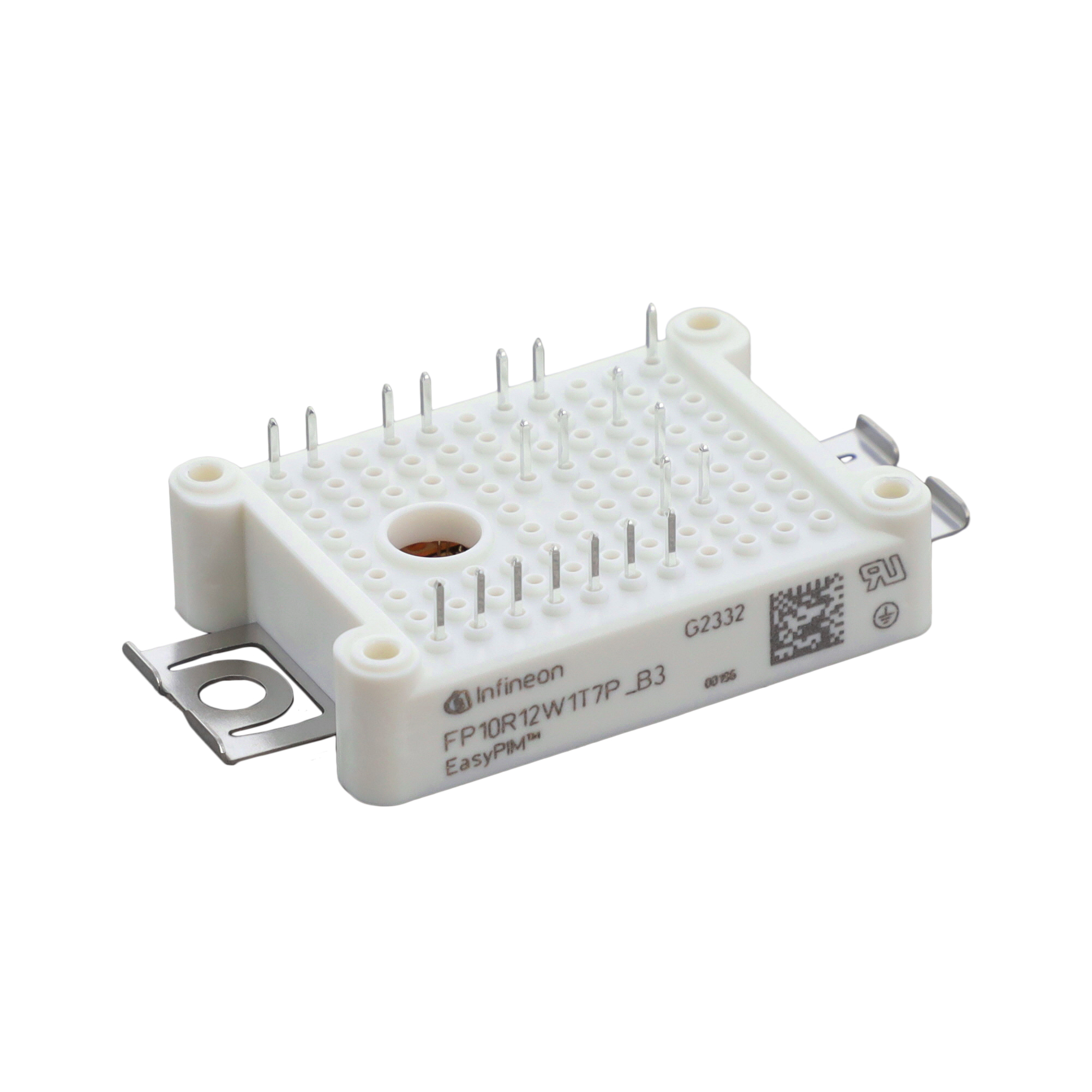

The FP10R12W1T7_B3 is an EasyPIM module integrating TRENCHSTOP IGBT7 and emitter controlled 7 diodes with an NTC thermistor. It features a collector-emitter voltage of 1200 V, a nominal continuous DC collector current of 10 A, and a repetitive peak current of 20 A. The saturation voltage is typically 1.60 V at 25°C. Operating junction temperature ranges from -40°C to 175°C. The module includes a 5 kΩ rated resistance NTC thermistor for thermal monitoring.
Feature Summary
- Integrates TRENCHSTOP IGBT7 technology with emitter controlled 7 diodes for optimized switching performance.
- Includes an integrated NTC thermistor for precise internal temperature monitoring.
- Features solder contact technology with an Al2O3 substrate for low thermal resistance.
- Provides 2.5 kV AC insulation capability for basic isolation compliance.
Applications
- Air conditioning systems
- Auxiliary inverters
- Motor drives
Procurement Notes
Verify the specific ordering suffix B3 against official Infineon documentation to confirm packaging and reel specifications. Ensure compatibility with industrial qualification standards such as IEC 60747 and IEC 60068 before procurement. Confirm that the module's mechanical mounting force requirements align with the assembly design.
Selection Notes
Select this module for applications requiring compact power density and overload operation up to 175°C. Verify that the 10 A continuous current rating meets the load requirements. Consider the 1.83 K/W thermal resistance for heatsink design. Ensure gate drive voltages remain within the ±20 V limit to prevent damage.
Part Context
This component belongs to the EasyPIM family, combining inverter and rectifier functions. It utilizes Infineon's seventh-generation trench technology. The module is designed for industrial applications, offering high power density and robust mechanical construction suitable for demanding environments.
Replacement Considerations
Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains the 1200 V rating and compatible pinout configuration. Verify that alternative modules support similar thermal resistance and insulation coordination requirements.
