FP15R12W1T7PBPSA1

Overview

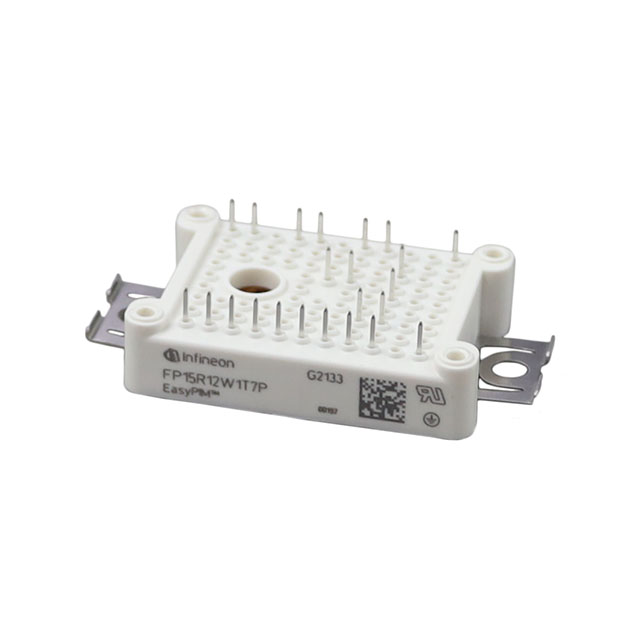

The FP15R12W1T7P is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 3-phase inverter configuration with an integrated brake-chopper and rectifier diode. The collector-emitter voltage (VCES) is rated at 1200 V, with a continuous DC collector current (ICDC) of 15 A at a junction temperature of 175 °C. The typical collector-emitter saturation voltage (VCEsat) is 1.60 V at 25 °C. The module includes an NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Operating temperatures range from -40 °C to +175 °C for the IGBTs and up to +150 °C for the rectifier.

Feature Summary

• Integrates TRENCHSTOP™ IGBT7 technology with low saturation voltage for efficient power conversion.
• Includes pre-applied thermal interface material and Al2O3 substrate for high power density and reliable heat dissipation.
• Features built-in NTC thermistor for precise junction temperature monitoring.
• Provides 2.5 kV AC insulation isolation between terminals and heatsink.

Applications

• Motor drives
• Air conditioning systems
• Auxiliary inverters

Procurement Notes

Verify the specific datasheet revision and product status before procurement. This component is designated as preliminary in the provided documentation. Confirm that the application environment complies with industrial qualification standards such as IEC 60747, 60749, and 60068. Ensure proper handling procedures are followed due to the presence of pre-applied thermal interface material during storage and shipment.

Selection Notes

Select this module for applications requiring a 1200 V rating and 15 A continuous current capability. The inclusion of a brake-chopper simplifies designs needing dynamic braking or DC bus voltage regulation. Verify that the system's switching frequency and gate drive requirements align with the specified internal gate resistor and switching energy losses. Ensure the mechanical mounting force falls within the 20 to 50 N range per clamp.

Part Context

This part belongs to the EasyPIM™ family, which integrates multiple power semiconductors into a single compact package. It combines three-phase inverter legs, a brake-chopper IGBT, and a rectifier diode. The series utilizes advanced silicon technology to achieve high power density while maintaining robust electrical insulation and thermal management capabilities for industrial environments.

Replacement Considerations

Public confirmed substitute part numbers are not available in the verified source material.

FAQ

What is the maximum operating junction temperature for the IGBT components?

The maximum operating junction temperature (Tvj op) for the IGBTs is 175 °C. Operation above 150 °C is permitted under overload conditions as specified in application note AN 2018-14.

Does the module include an integrated temperature sensor?

Yes, the module includes an NTC thermistor with a rated resistance of 5 kΩ at 25 °C and a B-value of 3375 K (B25/50).

What is the insulation voltage rating of the module?

The module provides an isolation test voltage (VISOL) of 2.5 kV RMS for 1 minute at 50 Hz. It uses an Al2O3 substrate for basic insulation according to class 1 of IEC 61140.
