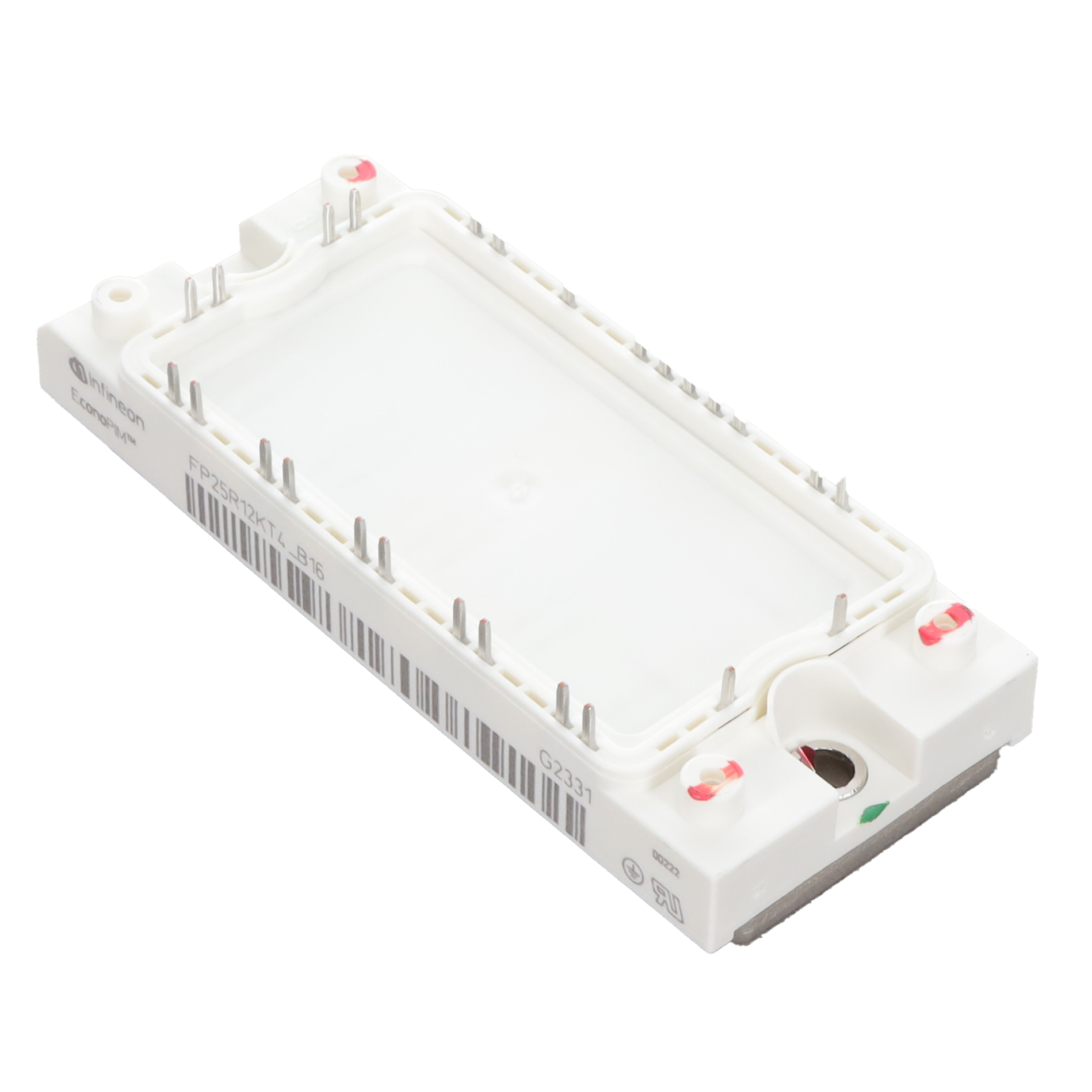

FP25R12KT4B16BPSA1

Overview

The FP25R12KT4B16BPSA1 is an EconoPIM2 module integrating Trench/Fieldstop IGBT4 and Emitter Controlled 4 diodes with an NTC sensor. It features a collector-emitter voltage of 1200 V, continuous DC collector current of 25 A at 100°C, and repetitive peak current of 50 A. The saturation voltage is 1.85 V at 25°C. Total power dissipation reaches 160 W at 25°C. Operating temperature spans -40°C to +150°C, with a maximum junction temperature of 175°C for the inverter and brake-chopper sections.

Feature Summary

• Integrates Trench/Fieldstop IGBT4 technology for low switching losses
• Includes integrated NTC temperature sensor for thermal monitoring
• Features isolated copper base plate with high power cycling capability
• Combines three-phase inverter, rectifier, and brake-chopper functions

Applications

• Motor drives
• Servo drives

Procurement Notes

Verify the specific ordering suffix B16 against official Infineon documentation to confirm material or packaging variations. Ensure compatibility with existing system designs by cross-referencing pinouts and mechanical dimensions. Confirm RoHS compliance status through the manufacturer's latest environmental declarations before finalizing procurement orders.

Selection Notes

Select this module for applications requiring combined rectification and inversion within a single package. Evaluate thermal resistance values based on the specific heatsink interface material used. Consider the gate resistor recommendations for operation with 0V/+15V drive voltages to ensure stable switching performance under varying load conditions.

Part Context

This component belongs to the FPXR12K4G series from Infineon Technologies. It utilizes the EconoPIM2 standard housing design. The module incorporates silicon technology for its semiconductor chips. It represents a consolidated solution for three-phase power conversion systems.
