Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY1B-711
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY1B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：25 A
- Power - Max：-
- Current - Collector Cutoff (Max)：5.6 µA
- Input Capacitance (Cies) @ Vce：4.77 nF @ 25 V
Download product information
Overview

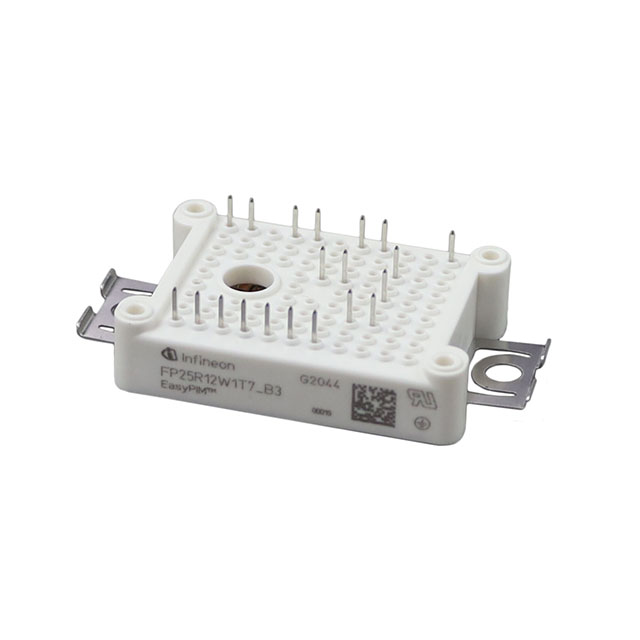

The FP25R12W1T7B3BPSA1 is a three-phase inverter IGBT module from Infineon's EasyPIM series, utilizing TRENCHSTOP IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 25 A at 105°C heatsink temperature. The module integrates six IGBTs and six emitter-controlled diodes for the inverter bridge, plus a brake-chopper circuit with one IGBT and one diode, alongside a rectifier stage. Key electrical parameters include a typical saturation voltage of 1.60 V and a maximum repetitive peak collector current of 50 A. It operates within a junction temperature range of -40°C to 175°C.
Feature Summary
- Integrates TRENCHSTOP IGBT7 and emitter-controlled diode technologies for optimized switching performance.
- Includes an integrated NTC thermistor for precise thermal monitoring.
- Features solder contact technology with an aluminum oxide substrate for low thermal resistance.
- Provides high power density through compact design and efficient insulation coordination.
Applications
- Auxiliary inverters
- Motor drives
- Air conditioning systems
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm mechanical or electrical variations. Ensure compatibility with recommended gate drivers listed by the manufacturer. Confirm that application requirements align with the industrial qualification standards specified in the datasheet before finalizing procurement.
Selection Notes
Select this module for applications requiring a complete three-phase inverter solution with integrated braking capabilities. Consider the 1200 V rating and 25 A continuous current capacity relative to the expected load profile. Evaluate the thermal management requirements based on the provided junction-to-heatsink thermal resistance values for optimal system efficiency.
Part Context
This component belongs to the EasyPIM family, which combines power semiconductors into a single package to simplify design. It utilizes Infineon's TRENCHSTOP IGBT7 generation, known for reduced losses compared to previous technologies. The module is designed for industrial applications and meets relevant safety and reliability standards.
Replacement Considerations
Consult official replacement lists for direct equivalents. Verify pinout compatibility and thermal characteristics when considering alternative part numbers from the same manufacturer or other vendors.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 50 A, limited by the operating junction temperature.
Does the module include thermal protection components?
Yes, the module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for temperature monitoring.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS for 1 minute at 50 Hz.
