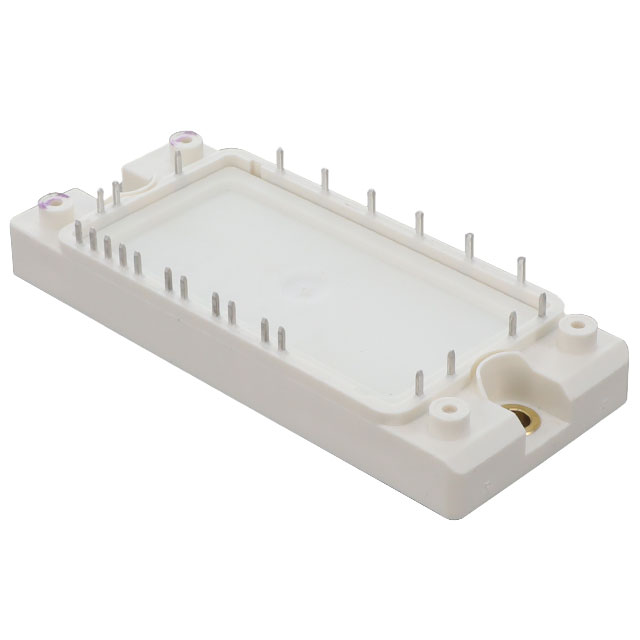

FP30R06KE3BPSA1

$59.87

Description：LOW POWER ECONO AG-ECONO2C-311
Series：EconoPIM™ 2

SKU:11860bb8e141 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO AG-ECONO2C-311
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：2V @ 15V, 30A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 150°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2C
Voltage - Collector Emitter Breakdown (Max)：600 V
Current - Collector (Ic) (Max)：37 A
Power - Max：125 W
Current - Collector Cutoff (Max)：1 mA
Input Capacitance (Cies) @ Vce：1.65 nF @ 25 V

Download product information

FP30R06KE3BPSA1

Overview

The FP30R06KE3BPSA1 is an EconoPIM2 module integrating Trench/Fieldstop IGBT3 and Emitter Controlled3 diodes. It features a collector-emitter voltage of 600 V, with continuous DC collector currents of 30 A at TC=65°C and 37 A at TC=25°C. The total power dissipation is 125 W at TC=25°C. Collector-emitter saturation voltage ranges from 1.55 V to 2.00 V depending on temperature. Switching losses include turn-on energy (Eon) of 1.40 mJ to 1.80 mJ and turn-off energy (Eoff) of 1.00 mJ to 1.20 mJ at TVj=25°C to 150°C. Thermal resistance junction-to-case is 1.20 K/W per IGBT. The module includes an NTC thermistor with a rated resistance of 5.00 kΩ at 25°C.

Feature Summary

Integrates Trench/Fieldstop IGBT3 technology with Emitter Controlled3 diodes for optimized switching performance.
Includes an integrated NTC thermistor for precise thermal monitoring within the module.
Features low stray inductance design through the EconoPIM2 package structure.

Applications

Three-phase inverter circuits
Brake chopper applications
Rectifier circuits

Procurement Notes

Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration and compliance status. Ensure that the component matches the required electrical ratings and thermal characteristics for the intended application before procurement.

Selection Notes

Select this module based on the 600 V blocking capability and current requirements up to 37 A. Consider the thermal resistance values and maximum junction temperature limits when designing the heatsinking solution. Verify gate drive compatibility with the specified threshold voltages and internal gate resistance.

Part Context

This component belongs to the FP series of IGBT modules manufactured by Infineon Technologies. It utilizes the EconoPIM2 package format, which combines multiple semiconductor chips into a single insulated module. The 'KE3' designation indicates the use of Trench/Fieldstop IGBT3 technology.
