Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-711
- Series：EconoPIM™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：2.15V @ 15V, 35A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：35 A
- Power - Max：210 W
- Current - Collector Cutoff (Max)：1 mA
- Input Capacitance (Cies) @ Vce：2 nF @ 25 V
Download product information
Overview

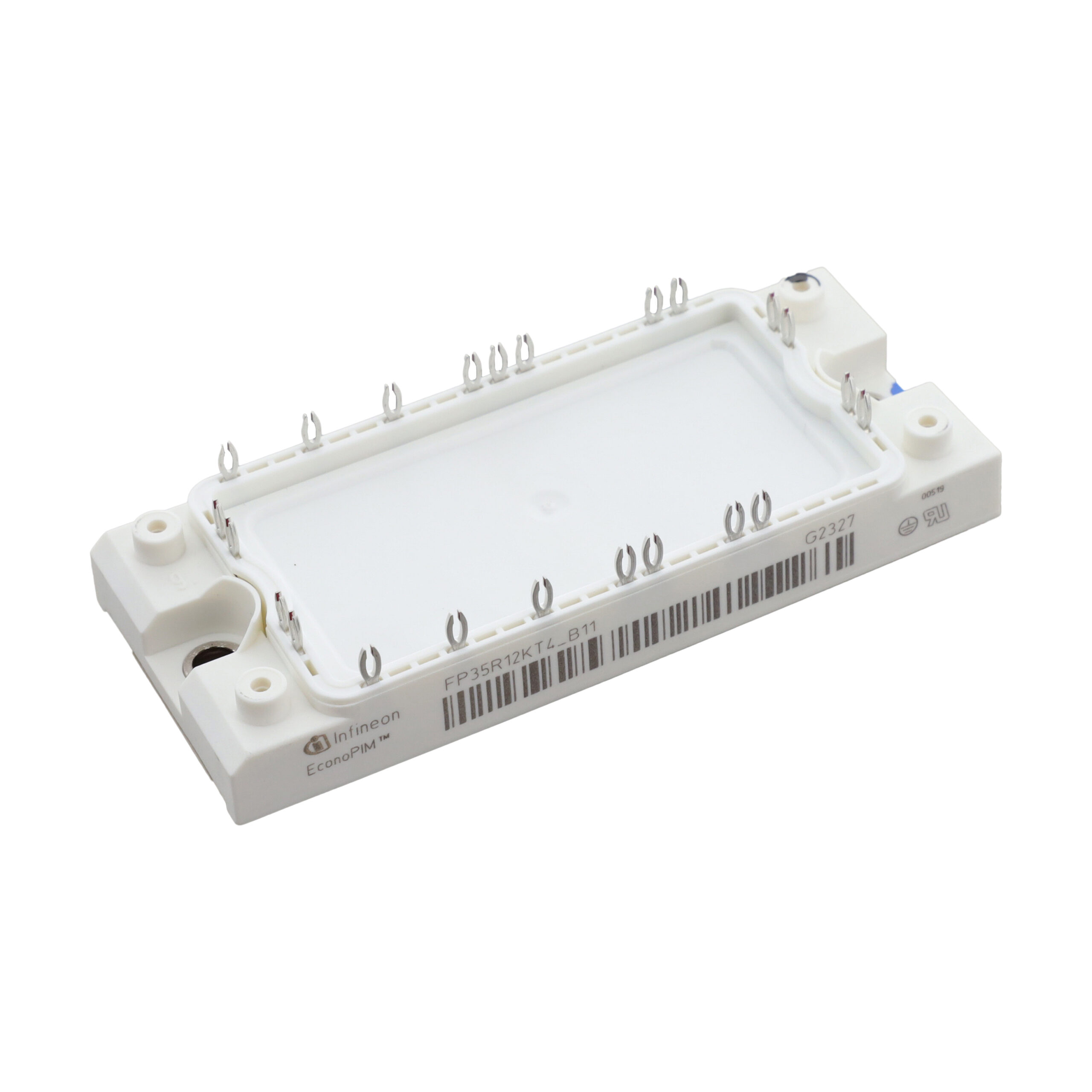

The FP35R12KT4B11BPSA1 is an IGBT module from Infineon Technologies, utilizing Trench/Fieldstop IGBT4 and EmCon4 diode technology within the EconoPIM2 package. It features a collector-emitter voltage of 1200V and a continuous collector current of 35A. The device operates with a maximum junction temperature of 175°C and supports screw mounting. Key electrical parameters include a saturation voltage of 2.6V at 70A and a forward voltage of 3.2V for the integrated diode at 70A.
Feature Summary
- Integrates Trench/Fieldstop IGBT4 technology for optimized switching performance
- Incorporates EmCon4 diodes to enhance reverse recovery characteristics
- Utilizes EconoPIM2 packaging for compact design and efficient thermal management
Applications
- Induction heating systems
- Air conditioning system drives
- General industrial motor drives
Procurement Notes
Verify the specific suffix B11BPSA1 against official datasheets to confirm pinout and terminal configuration. Ensure compatibility with existing gate drive requirements and thermal interface materials. Cross-reference part numbers with manufacturer documentation to avoid confusion with similar EconoPIM variants.
Selection Notes
Select this module for applications requiring 1200V blocking capability and moderate current handling up to 35A. Consider the 175°C max junction temperature for high-temperature environments. Evaluate thermal resistance values in the datasheet to determine appropriate heatsinking solutions for the intended duty cycle.
Part Context
This component belongs to Infineon's EconoPIM2 family, designed for power conversion applications. It combines advanced IGBT and diode technologies in a single module to reduce parasitic inductance and improve overall system efficiency compared to discrete solutions.
Replacement Considerations
Direct replacements may include other Infineon EconoPIM2 modules with matching voltage and current ratings, such as the FP35R12KT4 series variants. Verify pin compatibility and thermal specifications before substitution.
