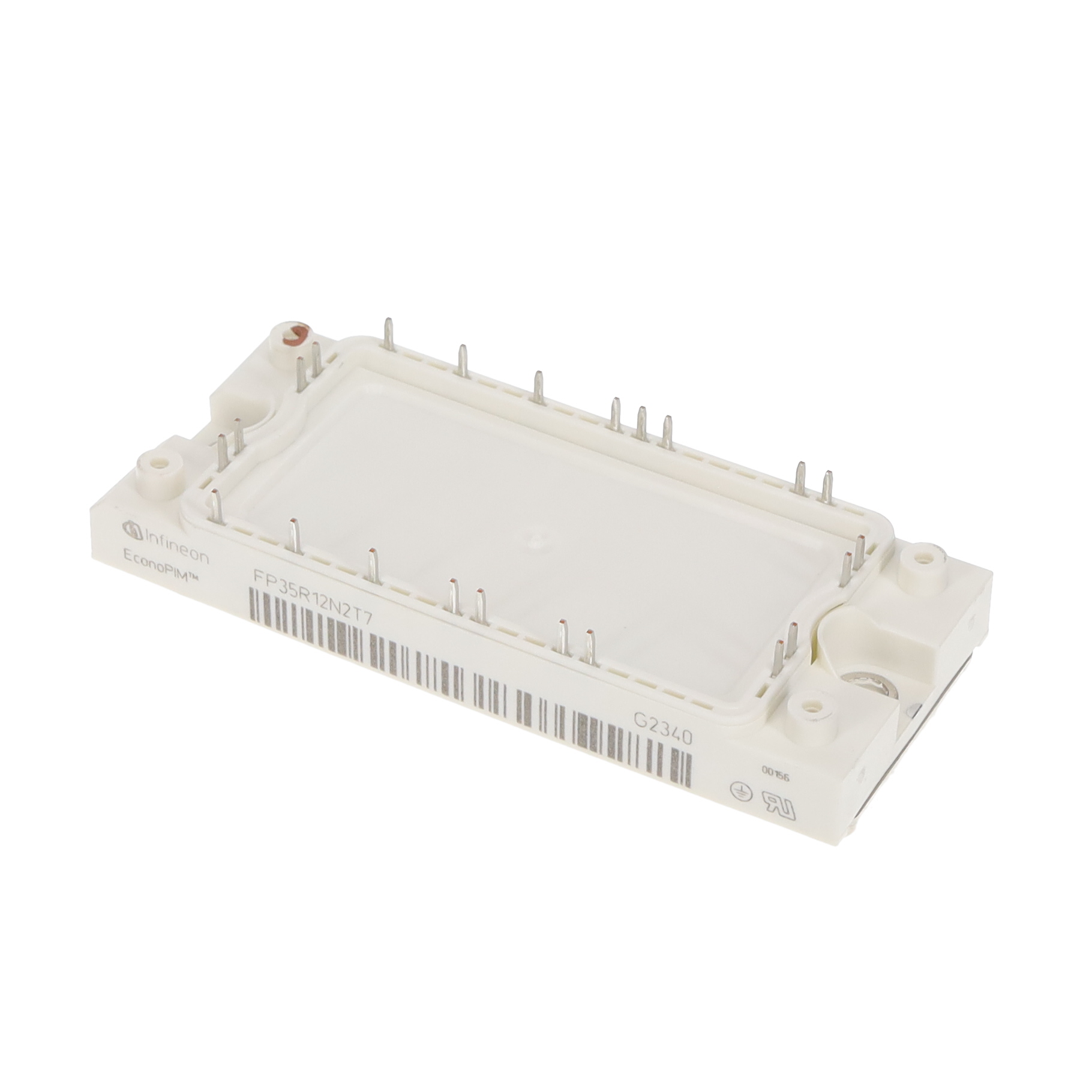

FP35R12N2T7BPSA2

$60.66

Description：LOW POWER ECONO
Series：EconoPIM™ 2

SKU:4fa29f425085 Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER ECONO
Series：EconoPIM™ 2
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：1.6V @ 15V, 35A
Input：Three Phase Bridge Rectifier
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-ECONO2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：35 A
Power - Max：-
Current - Collector Cutoff (Max)：7 µA
Input Capacitance (Cies) @ Vce：6.62 nF @ 25 V

Download product information

FP35R12N2T7BPSA2

Overview

The FP35R12N2T7BPSA2 is a three-phase inverter IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (ICDC) of 35 A at a case temperature of 105 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for thermal monitoring. Electrical characteristics include a typical collector-emitter saturation voltage (VCEsat) of 1.60 V at 25 °C and a forward voltage (VF) of 1.72 V for the inverter diode. The package utilizes a copper base plate and Al2O3 substrate, providing high power cycling capability.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diode technologies for optimized switching performance.
Includes an embedded NTC temperature sensor for precise junction temperature monitoring.
Constructed with a copper base plate and low thermal resistance Al2O3 substrate to enhance thermal management.
Designed for robust operation with high power and thermal cycling capabilities.

Applications

Auxiliary inverters
Motor drives
Servo drives

Procurement Notes

Verify component authenticity by cross-referencing the module label code against official Infineon documentation standards. Ensure the ordering suffix matches the specific variant required. Confirm compliance with industrial qualification standards such as IEC 60747 prior to integration into final designs.

Selection Notes

Select this module for applications requiring 1200 V blocking capability and up to 35 A continuous current. Consider the thermal resistance values when designing heatsinking solutions. Verify that the gate drive requirements align with the specified threshold voltages and internal gate resistor characteristics for optimal switching performance.

Part Context

This component belongs to the EconoPIM™2 series of power modules. It represents part of Infineon's TRENCHSTOP™ IGBT7 product family, which is engineered for industrial applications. The module integrates multiple semiconductor chips into a single compact package to facilitate efficient three-phase power conversion systems.
