Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2B-711
- Series：EconoPIM™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.5V @ 15V, 50A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：-
- Current - Collector Cutoff (Max)：10 µA
- Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V
Download product information
Overview

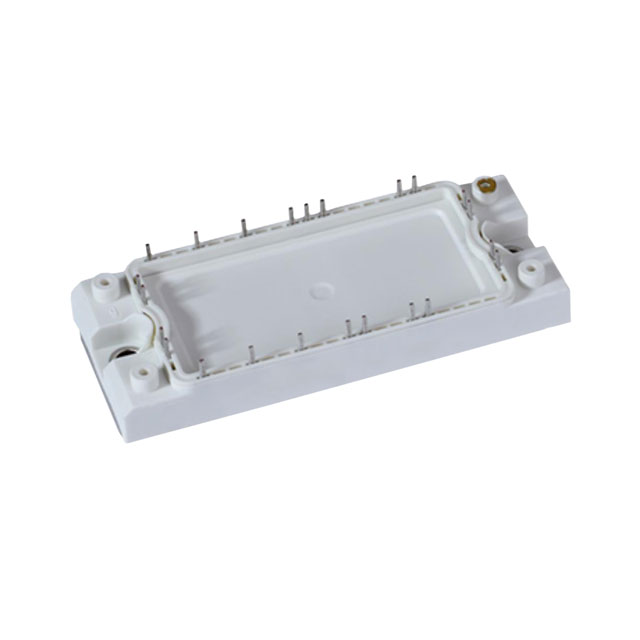

The FP50R12N2T7BPSA1 is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (ICDC) of 50 A at TC = 100 °C. The module incorporates an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C. Electrical characteristics include a typical collector-emitter saturation voltage (VCEsat) of 1.50 V at 25 °C for the inverter IGBTs. The device supports operation up to a maximum junction temperature of 175 °C.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diodes for optimized switching performance.
- Includes an embedded NTC temperature sensor for reliable thermal monitoring.
- Constructed with a copper base plate and Al2O3 substrate to ensure high power and thermal cycling capability.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm packaging and marking details. Confirm that the component meets industrial qualification standards as defined by relevant IEC tests. Ensure compatibility with existing system requirements before procurement.
Selection Notes
Select this module for applications requiring high power density and robust thermal cycling endurance. Consider the 1200 V rating and 50 A current capacity when designing three-phase inverter circuits. Evaluate the low saturation voltage and integrated thermal sensing features for efficiency and safety management.
Part Context
This component belongs to the EconoPIM™2 series, designed for compact and efficient power conversion systems. It combines multiple semiconductor functions into a single package, simplifying assembly and reducing parasitic inductance compared to discrete solutions.
Replacement Considerations
Consult official substitution lists for compatible modules within the EconoPIM™ family. Verify electrical parameters and pinout compatibility before replacing existing components in active designs.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature under switching conditions is 175 °C.
Does the module include thermal protection?
Yes, it includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C for temperature monitoring.
What technology is used for the IGBTs?
The module utilizes TRENCHSTOP™ IGBT7 technology.
