Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY2B-711
- Series：EasyPIM™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：-
- Current - Collector Cutoff (Max)：8 µA
- Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V
Download product information
Overview

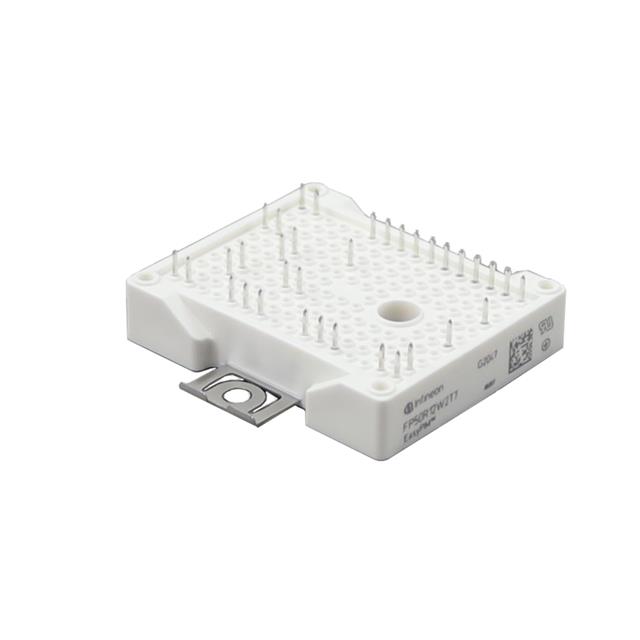

The FP50R12W2T7BPSA1 is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage and a nominal continuous DC collector current of 50 A at 25°C. The saturation voltage is typically 1.5 V. Operating temperatures range from -40°C to +175°C. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C. It provides 2.5 kV AC insulation for one minute and utilizes solder contact technology within a compact design.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter controlled 7 diodes for optimized switching performance.
- Includes an embedded NTC thermistor for precise internal temperature monitoring.
- Features high power density with low thermal resistance via Al2O3 substrate and solder contact technology.
- Provides robust electrical isolation with 2.5 kV AC insulation capability.
Applications
- Air conditioning systems
- Auxiliary inverters
- Motor drives
Procurement Notes
Verify the exact ordering suffix against official Infineon documentation to confirm specific packaging or variant details. Ensure compatibility with recommended gate drivers listed in the datasheet. Confirm that the application environment meets the specified industrial qualification standards and operating temperature limits before finalizing procurement.
Selection Notes
Select this module for applications requiring moderate switching frequencies and high controllability. Consider the 1200 V rating and 50 A current capacity for suitable power levels. Evaluate the thermal management requirements based on the junction-to-heat sink resistance values provided in the characteristic tables. Ensure the drive circuitry supports the required gate voltage levels.
Part Context
This component belongs to the EasyPIM™ family and incorporates the seventh generation of TRENCHSTOP™ IGBTs. It is designed specifically for variable speed drives and industrial applications. The module integrates both inverter and brake-chopper stages along with a rectifier stage into a single package.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Verify pinout compatibility and electrical ratings when considering alternative part numbers.
