FP75R12N2T7BPSA2

Overview

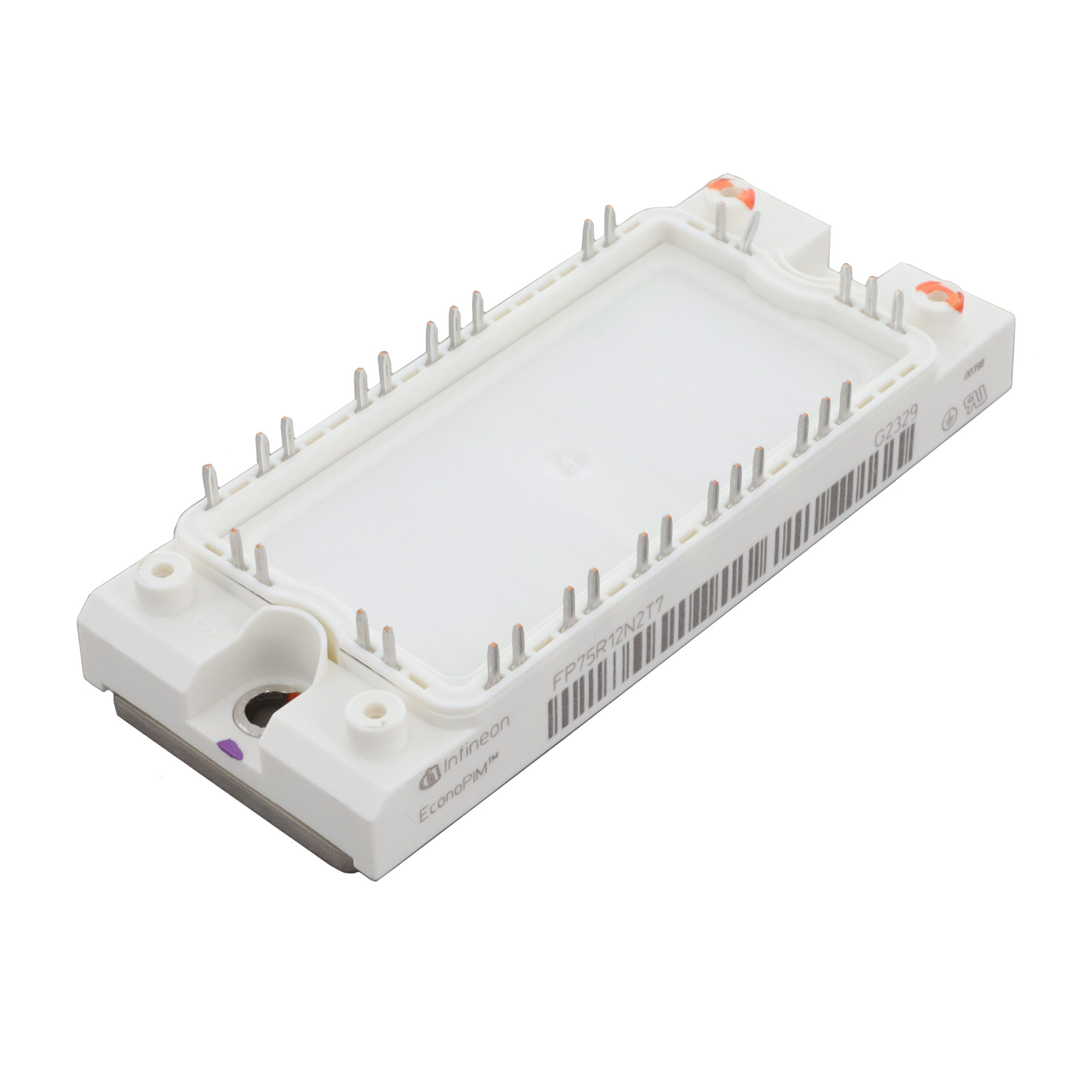

The FP75R12N2T7BPSA2 is a PIM IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 75 A at 25°C. The saturation voltage is 1.55 V at 25°C. Operating temperature ranges from -40°C to +175°C. The module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.

Feature Summary

• Integrates TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diode technologies for optimized switching performance.
• Includes an internal NTC temperature sensor for precise thermal monitoring.
• Constructed with a copper base plate and Al2O3 substrate to ensure high power cycling capability and low thermal resistance.

Applications

• Auxiliary inverters
• Motor drives
• Servo drives

Procurement Notes

Verify the specific BPSA2 suffix against official documentation to confirm mechanical or electrical variations compared to standard versions. Confirm RoHS compliance status through the manufacturer's latest release notes. Ensure sourcing channels provide valid traceability documents matching the module label code format.

Selection Notes

Select this component for industrial applications requiring robust thermal cycling performance. Validate that the system design accommodates the specified maximum junction temperature of 175°C. Check insulation coordination requirements against the 2.5 kV isolation test voltage rating provided in the datasheet.

Part Context

This module belongs to the EconoPIM™2 series designed for three-phase inverter configurations. It combines inverter switches with a rectifier and brake-chopper stage. The product is qualified for industrial applications according to IEC standards.

Replacement Considerations

FP75R12N2T7BPSA1
