Product Detailed Parameters
- Description：LOW POWER ECONO
- Series：EconoPIM™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 75A
- Input：Three Phase Bridge Rectifier
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：75 A
- Power - Max：-
- Current - Collector Cutoff (Max)：14 µA
- Input Capacitance (Cies) @ Vce：15.1 nF @ 25 V
Download product information
Overview

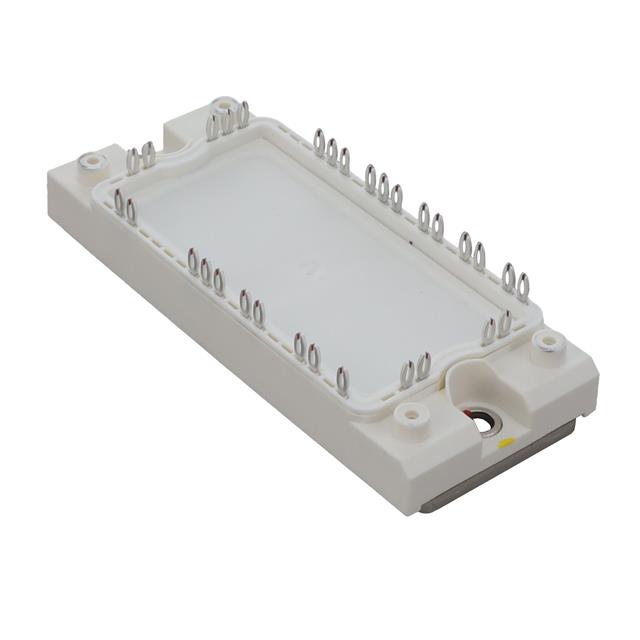

The FP75R12N2T7PB11BPSA1 is an EconoPIM™2 power module integrating TRENCHSTOP™ IGBT7 and emitter-controlled diodes. It features a 1200 V collector-emitter voltage (VCES) and a nominal continuous DC collector current of 75 A with a repetitive peak current of 150 A. The inverter IGBT exhibits a typical saturation voltage of 1.55 V at 25°C, while the integrated NTC thermistor provides a rated resistance of 5 kΩ at 25°C. The module utilizes PressFIT contact technology and includes pre-applied thermal interface material for reliable mounting.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter-controlled diodes for high controllability and low conduction losses.
- Features PressFIT contact technology to eliminate soldering fatigue and enhance mechanical reliability.
- Includes an integrated NTC temperature sensor for precise thermal monitoring.
- Utilizes a copper base plate and Al2O3 substrate to ensure high power cycling capability.
Applications
- Auxiliary inverters
- Motor drives
- Servo drives
Procurement Notes
Verify the specific ordering suffix against official Infineon documentation to confirm the exact configuration. Ensure that the required application notes regarding storage and shipment are consulted prior to handling modules containing pre-applied thermal interface material.
Selection Notes
Select this component for industrial applications requiring robust thermal cycling performance. Confirm that the operating junction temperature remains within the specified -40°C to 175°C range. Verify compatibility with the intended gate drive circuitry and mounting torque specifications.
Part Context
This part belongs to the EconoPIM™2 series from Infineon Technologies. It is designed as a complete power stage solution, combining inverter switches, rectifier diodes, and brake-chopper components into a single compact package suitable for demanding industrial environments.
Replacement Considerations
Consult official Infineon cross-reference lists for verified substitutes. Do not assume functional equivalence with other packages or technologies without validating electrical parameters and pin configurations.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 150 A for a pulse duration of 1 ms.
Is the module qualified for industrial applications?
Yes, the module is qualified for industrial applications according to the relevant tests of IEC 60747, 60749, and 60068.
What is the isolation test voltage?
The isolation test voltage (VISOL) is 2.5 kV RMS at 50 Hz for 1 minute.
