FP7G75US60

Overview

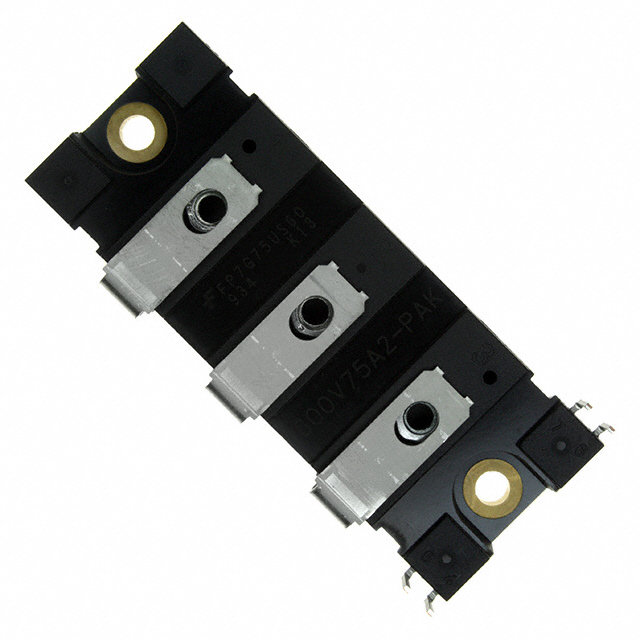

The FP7G75US60 is a transfer molded type IGBT module manufactured by Fairchild Semiconductor. It features a dual collector-emitter configuration designed for high-performance power applications. The module supports a maximum collector-emitter voltage of 600 V and a continuous collector current of 75 A. With a maximum power dissipation rating of 310 W, it offers robust thermal management capabilities. The device utilizes the EPM7 package style for chassis mounting, ensuring reliable operation in demanding industrial environments.

Feature Summary

• Transfer molded construction providing enhanced short circuit ruggedness
• Dual collector-emitter configuration for versatile circuit integration
• Optimized design for low conduction and switching losses

Applications

• Industrial motor drives
• Uninterruptible power supplies (UPS)
• High-frequency induction heating systems

Procurement Notes

This component is officially classified as obsolete and is no longer in production by Fairchild Semiconductor. Procurement must rely on secondary market distributors or surplus inventory holders. Verify part authenticity carefully due to potential counterfeit risks associated with discontinued semiconductor devices. Ensure that any available units match the original datasheet specifications exactly before integration into new designs.

Selection Notes

Engineers should consider this module only for maintenance or replacement scenarios where the original system design utilized the FP7G75US60. Due to its discontinued status, direct replacements are not guaranteed to be identical. Evaluate thermal requirements against the 310 W dissipation limit and ensure the chassis mounting interface matches the EPM7 form factor. Cross-reference electrical parameters with modern equivalents if redesigning the application.

Part Context

The FP7G75US60 belongs to Fairchild's line of transfer molded IGBT modules, which were engineered to balance efficiency and durability. These modules typically serve as key switching elements in medium-power inverters and converters. The specific model integrates N-channel IGBT technology within a standardized housing, facilitating easier installation compared to discrete component assemblies while maintaining high reliability standards for industrial use cases.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. As the product is obsolete, engineers must identify equivalent components based on matching voltage, current, and package specifications from other manufacturers.
