FR10515N0100JBK

Overview

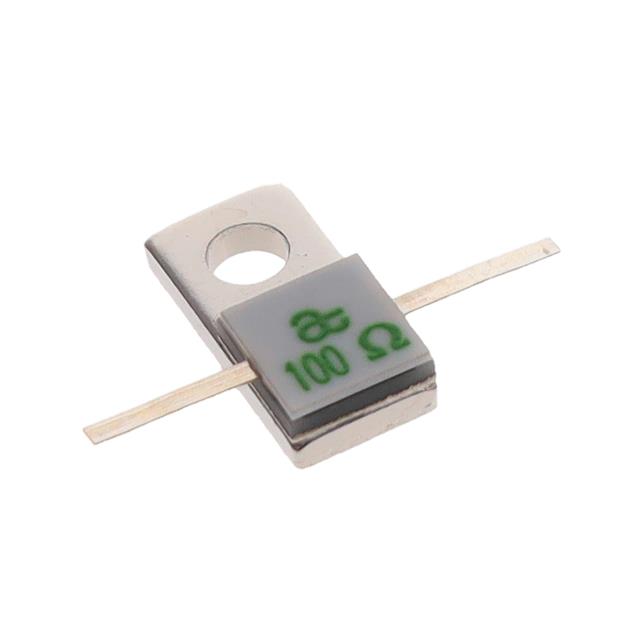

The FR10515N0100JBK is a high-frequency RF resistor manufactured by KYOCERA AVX, belonging to the FT1 series. It features a resistance value of 100 Ohms with a tolerance of 5%. Designed for PCB mount applications, this component operates within a temperature range of -55°C to +150°C. The device is suitable for high-frequency environments and is supplied in tray packaging.

Feature Summary

• Designed for high-frequency and RF applications
• Robust thermal performance across extended temperature ranges
• Precision resistance tolerance for signal integrity

Applications

• High-frequency circuit termination
• RF impedance matching networks
• Signal conditioning in communication systems

Procurement Notes

Verify the specific suffix codes against official datasheets to ensure correct resistance and tolerance values. Confirm package type and lead finish requirements prior to ordering. Cross-reference manufacturer part numbers with distributor listings to avoid substitution errors. Ensure storage conditions align with component specifications.

Selection Notes

Select this component based on its 100 Ohm resistance and 5% tolerance suitability for RF circuits. Evaluate thermal stability requirements against the specified operating temperature range. Consider physical mounting constraints and available footprint dimensions. Verify frequency response characteristics match system design needs.

Part Context

This resistor is part of the FT1 series from KYOCERA AVX, specialized for RF and high-frequency uses. The series offers various resistance values and power ratings. This specific model provides stable performance in demanding electronic environments, supporting reliable signal processing.

Replacement Considerations

Consult official substitution guides for compatible alternatives. Verify electrical parameters and physical dimensions before replacing. Ensure equivalent thermal and frequency characteristics are maintained.
