FR10800N0050JBK

Overview

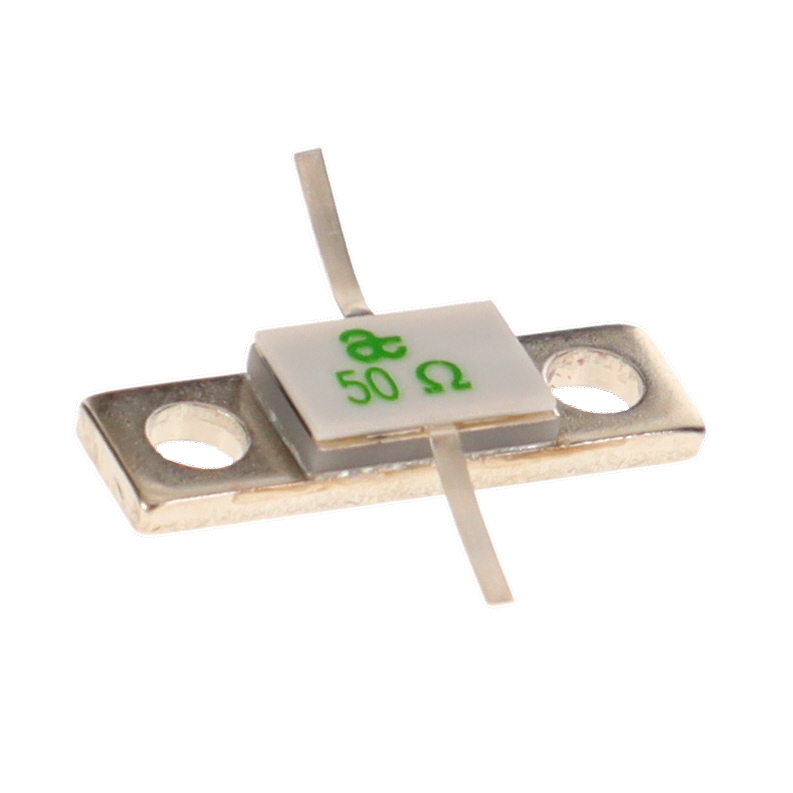

The FR10800N0050JBK is a high-frequency RF resistor from the KYOCERA AVX FR1 series. It features a resistance of 50 Ohms with a tolerance of 5% and a power rating of 100 W. The component operates within a temperature range of -55°C to +150°C, exhibiting a temperature coefficient of 150 PPM/°C. Physical dimensions are 20.3 mm in length, 5.84 mm in width, and 3.81 mm in height. It utilizes axial termination for PCB mounting.

Feature Summary

• Designed for high-frequency applications
• Capable of handling 100 W power ratings
• Axial leaded termination style

Applications

• High frequency circuits
• RF resistive terminations
• PCB mounted attenuators

Procurement Notes

Verify the specific ordering suffix against official datasheets to ensure correct packaging and terminal configuration. Confirm that the 100 W power rating aligns with thermal management requirements in the target application environment. Check manufacturer documentation for any recent product change notices affecting physical dimensions or material composition prior to final procurement decisions.

Selection Notes

Select this component when a 50 Ohm impedance match is required at high frequencies with significant power dissipation needs. Ensure the operating temperature range of -55°C to +150°C covers the environmental conditions. Compare physical footprint constraints against the available 20.3 x 5.84 x 3.81 mm dimensions to verify compatibility with the printed circuit board layout.

Part Context

This part belongs to the KYOCERA AVX FR1 series of high-power RF resistors. The series offers power handling capabilities ranging from 1W to 250W. These components are engineered for robust performance in demanding radio frequency environments, providing stable resistive characteristics under high power loads.

Replacement Considerations

Consult official substitution guides for equivalent parts within the FR1 series or other KYOCERA AVX high-power RF resistor lines. Verify that alternative components match the 50 Ohm resistance, 100 W power rating, and axial package dimensions to maintain circuit integrity.
