FR10975N0100J01

Overview

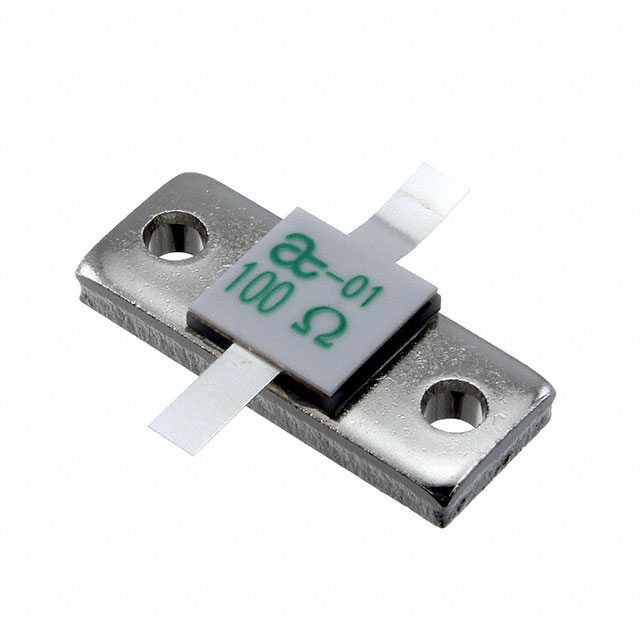

The FR10975N0100J01 is a high-power thin film resistor manufactured by KYOCERA AVX, designed for surface mount applications with flange mounting capabilities. It features a resistance value of 100 Ohms with a tolerance of 5% and a temperature coefficient of 150 PPM/C. The component has a power rating of 250W and operates within a temperature range of -55°C to +150°C. Physical dimensions are 24.77 mm in length, 9.779 mm in width, and 5.715 mm in height.

Feature Summary

• Utilizes thin film technology on an AlN substrate for high thermal conductivity
• Designed for high-power resistive applications requiring robust thermal management
• Offers precise resistance stability with low temperature coefficient characteristics

Applications

• High power electronic circuits
• RF impedance matching networks
• Industrial equipment load balancing

Procurement Notes

Verify the specific ordering suffix against official KYOCERA AVX documentation to ensure correct resistance, tolerance, and packaging specifications. Confirm that the flange mount style aligns with your PCB layout and thermal dissipation requirements. Check RoHS compliance status through the manufacturer's detailed specification sheet before finalizing procurement decisions.

Selection Notes

Select this component when high power handling and precise resistance values are critical in space-constrained designs. The thin film construction on AlN substrate provides superior thermal performance compared to bulk metal alternatives. Ensure adequate heatsinking or board copper area is available to manage the 250W power rating effectively within the specified operating temperature range.

Part Context

This part belongs to the FR1 series of flange mount resistors from KYOCERA AVX, targeting high-power SMD applications. It represents a specialized solution for RF and industrial sectors requiring stable resistive elements with high thermal efficiency. The series emphasizes reliability and precision in demanding electrical environments.

Replacement Considerations

Consult official KYOCERA AVX cross-reference guides for verified substitutes. Ensure replacement parts match the 100 Ohm resistance, 5% tolerance, and 250W power rating. Verify physical footprint compatibility and thermal interface requirements to maintain system performance.
