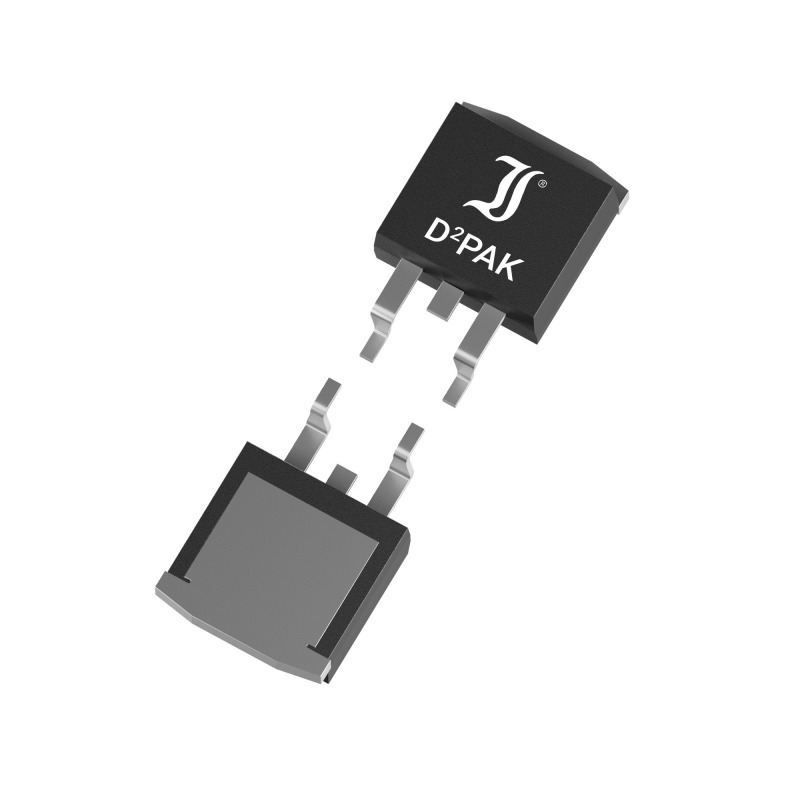

FR20DKD2 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diotec Semiconductor. Its product description is DIODE STANDARD 200V 20A TO263AB. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for FR20DKD2
- Description：DIODE STANDARD 200V 20A TO263AB
- Series：-
- Mfr：Diotec Semiconductor
- Package：Bulk
- Technology：Standard
- Voltage - DC Reverse (Vr) (Max)：200 V
- Current - Average Rectified (Io)：20A
- Voltage - Forward (Vf) (Max) @ If：960 mV @ 20 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：350 ns
- Current - Reverse Leakage @ Vr：5 µA @ 200 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount
- Package / Case：TO-263-3, D2PAK (2 Leads + Tab), TO-263AB
- Supplier Device Package：TO-263AB (D2PAK)
- Operating Temperature - Junction：-50°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for FR20DKD2
Single Diodes Overview
The FR20DKD2 is a fast efficient rectifier diode manufactured by Diotec Semiconductor. It features a 200 V repetitive peak reverse voltage and a 20 A maximum average forward rectified current. The device utilizes a surface mount TO-263AB (D2PAK) package with solder pin termination. Key electrical characteristics include a low forward voltage drop and high surge current capability, designed for reliable performance in general-purpose rectification applications.
Single Diodes Feature Summary
- Fast recovery characteristics for efficient switching
- High thermal stability and robust construction
- Surface mount design for automated assembly
Single Diodes Applications
- General-purpose rectification in power supplies
- Freewheeling diodes in inductive load circuits
- DC-DC converter output stages
Single Diodes Procurement Notes
Verify the specific suffix 'KD2' against the official Diotec Semiconductor datasheet to confirm exact electrical tolerances and marking codes. Ensure the ordering quantity matches the manufacturer's standard bulk packaging requirements. Cross-reference the RoHS compliance status with the latest product change notification to ensure regulatory adherence for your target market.
Single Diodes Selection Notes
Select this component when a 200 V rating and 20 A continuous current are required in a D2PAK footprint. Consider the forward voltage drop at rated current for thermal management calculations. Verify that the operating junction temperature range aligns with the system's environmental constraints and that the package thermal resistance meets the heat dissipation needs of the application.
Single Diodes Part Context
This part belongs to Diotec Semiconductor's line of fast efficient rectifier diodes. These devices are engineered for high reliability in industrial and consumer electronics. The TO-263AB package provides a balance between current handling capacity and board space efficiency, making it suitable for medium-power applications where standard through-hole packages are too large.
Single Diodes Replacement Considerations
Consult the official Diotec Semiconductor replacement guide or product change notifications for verified substitute part numbers. Do not assume cross-compatibility with other manufacturers' TO-263-3 packages without verifying pinout, voltage ratings, and thermal specifications against the original datasheet.
