FR805

$0.79

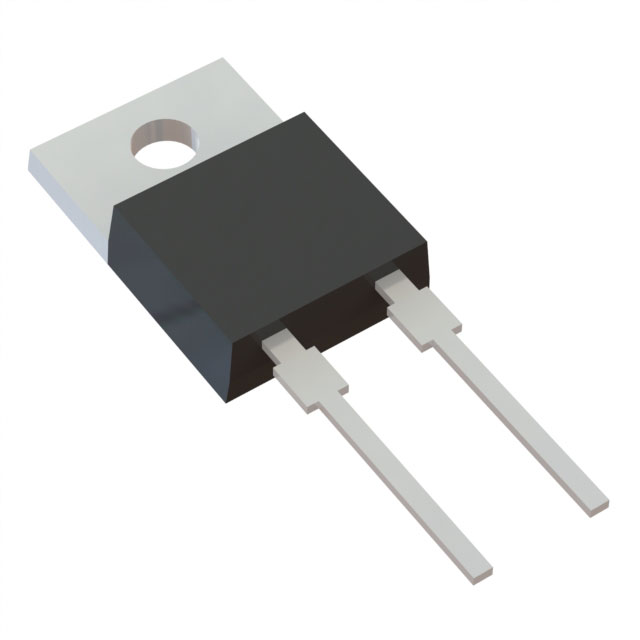

Description：DIODE STANDARD 600V 8A TO220AC
Series：-
Mfr：Diodes Incorporated
Package：Tube

SKU:ae7b683ea264 Category: Single Diodes Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

FR805 is listed in the Single Diodes range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE STANDARD 600V 8A TO220AC. Review the specifications below when checking this part for your BOM.

Single Diodes specifications for FR805

Description：DIODE STANDARD 600V 8A TO220AC
Series：-
Mfr：Diodes Incorporated
Package：Tube
Technology：Standard
Voltage - DC Reverse (Vr) (Max)：600 V
Current - Average Rectified (Io)：8A
Voltage - Forward (Vf) (Max) @ If：1.3 V @ 8 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：250 ns
Current - Reverse Leakage @ Vr：10 µA @ 600 V
Capacitance @ Vr, F：-
Mounting Type：Through Hole
Package / Case：TO-220-2
Supplier Device Package：TO-220AC
Operating Temperature - Junction：-65°C ~ 175°C
Grade：-
Qualification：-

Single Diodes datasheet and documents for FR805

FR805

Single Diodes Overview

The FR805 is an 8.0A fast recovery rectifier diode from Diodes Incorporated, housed in a TO-220A molded plastic package with plated axial leads. It features a maximum recurrent peak reverse voltage of 600V and a maximum average forward rectified current of 8.0A at a case temperature of 100°C. The device exhibits a low forward voltage drop of 1.3V at full load and a typical junction capacitance of 70pF. Operating temperatures range from -65°C to +175°C.

Single Diodes Feature Summary

Low reverse recovery time for efficient switching
High surge current capability
Plastic material with UL flammability rating 94V-0

Single Diodes Applications

Fast recovery rectification in power supplies
General-purpose high-voltage rectification
Inductive or resistive load circuits

Single Diodes Procurement Notes

Verify the specific suffix 'R' against official documentation to confirm lead configuration and packaging details. Ensure the component meets required thermal management standards for the intended application environment. Confirm compliance with relevant safety certifications before integration into final products.

Single Diodes Selection Notes

Select this component when a high-current, high-voltage rectifier with fast recovery characteristics is required. Consider the TO-220A package size for adequate heat dissipation. Evaluate the 600V reverse voltage rating against circuit peak voltages to ensure reliable operation under all conditions.

Single Diodes Part Context

This part belongs to the FR801-FR805 series of fast recovery rectifiers. The series offers varying reverse voltage ratings while maintaining consistent current handling capabilities. These components are designed for general-purpose applications requiring robust performance and reliability in power conversion systems.

Single Diodes Replacement Considerations

FR801, FR802, FR803, FR804

Single Diodes FAQ

What is the maximum non-repetitive peak forward surge current?

The maximum non-repetitive peak forward surge current is 150 A, measured using the JEDEC Method with an 8.3ms single half sine-wave superimposed on rated load.
