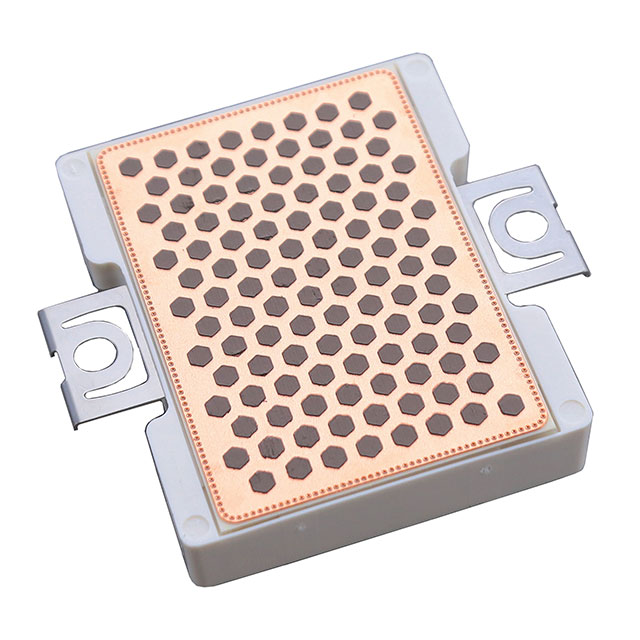

FS100R12W2T7PBPSA1

$68.94

Description：LOW POWER EASY AG-EASY2B-711
Series：EasyPACK™

SKU:f582f636101f Category: IGBT Modules Brand: Infineon Technologies

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：LOW POWER EASY AG-EASY2B-711
Series：EasyPACK™
Mfr：Infineon Technologies
Package：Tray
IGBT Type：Trench Field Stop
Configuration：Three Phase Inverter
Vce(on) (Max) @ Vge, Ic：-
Input：Standard
NTC Thermistor：Yes
Operating Temperature：-40°C ~ 175°C (TJ)
Mounting Type：Chassis Mount
Package / Case：Module
Supplier Device Package：AG-EASY2B
Voltage - Collector Emitter Breakdown (Max)：1200 V
Current - Collector (Ic) (Max)：70 A
Power - Max：-
Current - Collector Cutoff (Max)：9 µA
Input Capacitance (Cies) @ Vce：21.7 nF @ 25 V

Download product information

FS100R12W2T7PBPSA1

Overview

The FS100R12W2T7PBPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a maximum collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 100 A at 175°C junction temperature. The typical collector-emitter saturation voltage is 1.50 V at 25°C. The module incorporates emitter-controlled diodes with a typical forward voltage of 1.72 V. It includes an integrated NTC thermistor rated at 5 kΩ at 25°C for thermal monitoring. The package provides 2.5 kV AC insulation for one minute and utilizes an Al2O3 substrate.

Feature Summary

Integrates TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technology
Includes an integrated NTC thermistor for thermal management
Features solder contact technology with high power density
Provides 2.5 kV AC insulation using an Al2O3 substrate

Applications

Air conditioning systems
Auxiliary inverters
Motor drives
Servo drives
UPS systems

Procurement Notes

Verify the specific ordering suffix PBPSA1 against official documentation to confirm exact material content and compliance status. Ensure compatibility with recommended gate drivers listed in the manufacturer's guide. Confirm that the application environment meets the industrial qualification standards defined in IEC 60747, 60749, and 60068.

Selection Notes

Select this module for applications requiring high overload capability up to 175°C. Consider the low stray inductance of 20 nH for efficient switching. Evaluate the thermal resistance values for heat sink design. Verify that the required peak repetitive currents align with the 200 A rating under specified pulse conditions.

Part Context

This component belongs to the EasyPACK™ series of silicon modules. It represents the TRENCHSTOP™ IGBT7 generation, designed for industrial quality. The module integrates six switches and six diodes into a compact form factor suitable for three-phase inverter topologies.

Replacement Considerations

Consult official substitution lists for compatible variants within the EasyPACK™ family. Verify pinout and electrical characteristics before replacing existing designs.
