Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO2-6
- Series：EconoPACK™ 2
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Level Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO2
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：1.2 µA
- Input Capacitance (Cies) @ Vce：30.1 nF @ 25 V
Download product information
Overview

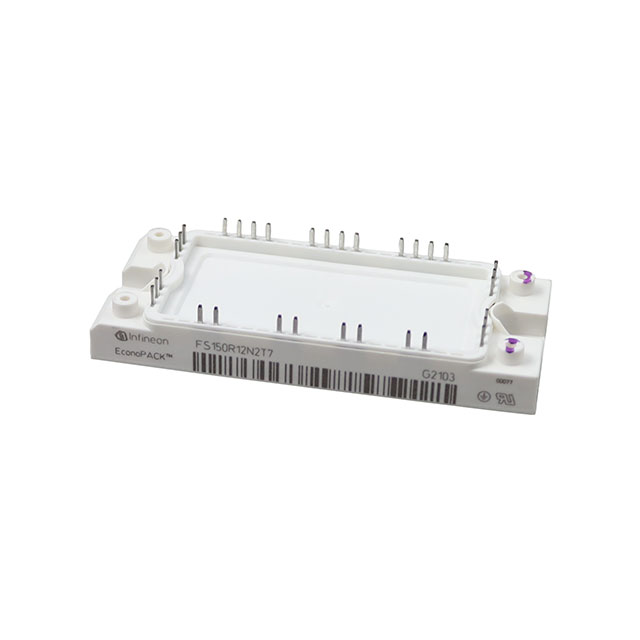

The FS150R12N2T7BPSA1 is an EconoPACK™2 IGBT power module featuring TRENCHSTOP™ IGBT7 technology and Emitter Controlled 7 diodes. It provides a collector-emitter voltage of 1200 V, a continuous DC collector current of 150 A at 80°C case temperature, and a repetitive peak current of 300 A. The module integrates an NTC thermistor for thermal monitoring and utilizes solder contact technology with an Al2O3 substrate and copper baseplate. It supports operation up to 175°C junction temperature and includes low stray inductance of 25 nH.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and Emitter Controlled 7 diode technologies for optimized switching performance.
- Includes an integrated NTC temperature sensor for reliable thermal management.
- Features high power and thermal cycling capability with solder contact technology.
- Utilizes an Al2O3 substrate with low thermal resistance and a copper baseplate.
Applications
- Motor drives
- Auxiliary inverters
- Servo drives
Procurement Notes
Verify the specific ordering suffix BPSA1 against official Infineon documentation to confirm exact packaging and reel specifications. Ensure compliance with industrial qualification standards such as IEC 60747, 60749, and 60068 before integration. Confirm that the application does not require automotive-specific AEC Q100 or AEC Q101 qualifications, as this product is explicitly not qualified for those standards.
Selection Notes
Select this module for industrial applications requiring compact designs with high reliability. The 150 A continuous current rating and 1200 V blocking voltage suit medium-power inverter topologies. Consider the 175°C maximum junction temperature capability for overload operations. Verify gate resistor requirements against the provided switching loss characteristics to optimize dv/dt and di/dt performance.
Part Context
This component belongs to the EconoPACK™2 series from Infineon Technologies. It is part of the broader TRENCHSTOP™ IGBT7 family, designed for low- and medium-power industrial drives. The package offers a height of 17 mm with screw terminals, facilitating easy assembly and optimized thermal resistance to the heatsink.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Direct replacements must match the 1200 V rating, 150 A current capacity, and EconoPACK™2 footprint. Verify pinout compatibility and thermal resistance parameters to ensure equivalent performance in existing layouts.
FAQ
Is this module qualified for automotive applications?
No, the datasheet explicitly states that this product is not qualified according to AEC Q100 or AEC Q101 documents.
What is the maximum junction temperature allowed for normal operation?
The maximum operating junction temperature (Tvj op) is 175°C. Operation above 150°C is permitted under overload conditions.
Does the module include a built-in temperature sensor?
Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C.
