Product Detailed Parameters
- Description：LOW POWER ECONO AG-ECONO3B-711
- Series：EasyPACK™3, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：1.8V @ 15V, 150A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-ECONO3B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：150 A
- Power - Max：-
- Current - Collector Cutoff (Max)：12 µA
- Input Capacitance (Cies) @ Vce：30.1 nF @ 25 V
Download product information
Overview

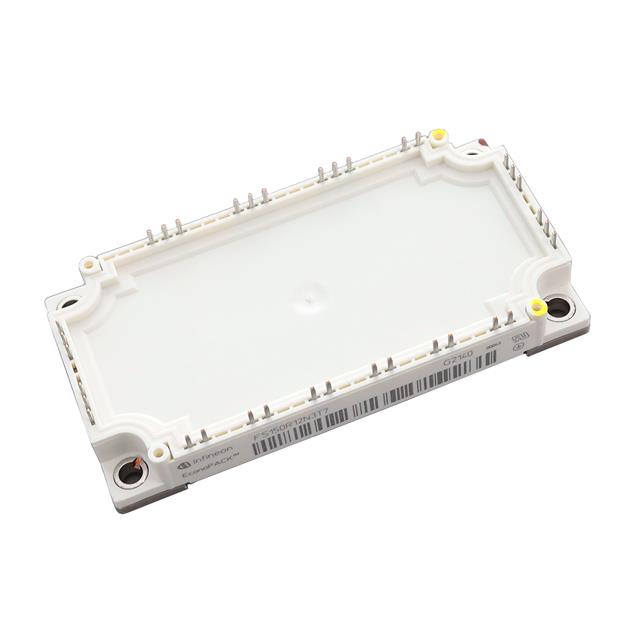

The FS150R12N3T7BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology within the EconoPACK™3 package. It features an integrated NTC thermistor and emitter-controlled diodes. Key electrical parameters include a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (ICDC) of 150 A at a case temperature of 85 °C. The typical collector-emitter saturation voltage (VCEsat) is 1.55 V at 25 °C. The module supports overload operation up to a junction temperature of 175 °C and includes a copper base plate with an Al2O3 substrate for thermal management.
Feature Summary
- Incorporates TRENCHSTOP™ IGBT7 technology for high power density and switching performance.
- Features an integrated NTC temperature sensor for precise thermal monitoring.
- Utilizes solder contact technology with a copper base plate and low thermal resistance Al2O3 substrate.
- Designed for high power cycling capability and mechanical robustness.
Applications
- Motor drives
- Auxiliary inverters
- Servo drives
Procurement Notes
Verify component authenticity by cross-referencing the module label code against official Infineon documentation standards. Ensure that the ordering suffix matches the specific variant required for the application. Confirm compliance with industrial qualification standards such as IEC 60747 and IEC 60068 prior to integration into final equipment designs.
Selection Notes
Select this module for applications requiring high thermal cycling endurance and efficient heat dissipation in medium-power scenarios. Consider the 1200 V rating and 150 A current capacity when designing motor control or inverter circuits. Evaluate the need for the integrated NTC sensor if active thermal protection is part of the system architecture.
Part Context
This component belongs to the EconoPACK™3 product family, which is designed for medium-power applications. It represents the integration of Infineon's latest IGBT7 generation silicon with advanced packaging technologies. The series provides a balance between electrical performance and mechanical durability for industrial environments.
Replacement Considerations
Consult official Infineon substitution guides for compatible alternatives. Verify pinout compatibility and thermal characteristics before replacing existing modules in established designs.
FAQ
What is the maximum operating junction temperature for this module?
The module supports operation up to a junction temperature of 175 °C, although temperatures above 150 °C are restricted to overload conditions.
Does the module include a temperature sensing element?
Yes, it features an integrated NTC thermistor with a rated resistance of 5 kΩ at 25 °C.
What technology is used for the internal semiconductor switches?
The module utilizes TRENCHSTOP™ IGBT7 technology combined with emitter-controlled diodes.
