Product Detailed Parameters
- Description：IGBT MODULE HYBRID 28MDIP
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase
- Vce(on) (Max) @ Vge, Ic：2.25V @ 15V, 200A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：PG-MDIP-28
- Voltage - Collector Emitter Breakdown (Max)：700 V
- Current - Collector (Ic) (Max)：200 A
- Power - Max：694 W
- Current - Collector Cutoff (Max)：100 µA
- Input Capacitance (Cies) @ Vce：13.5 nF @ 25 V
Download product information
Overview

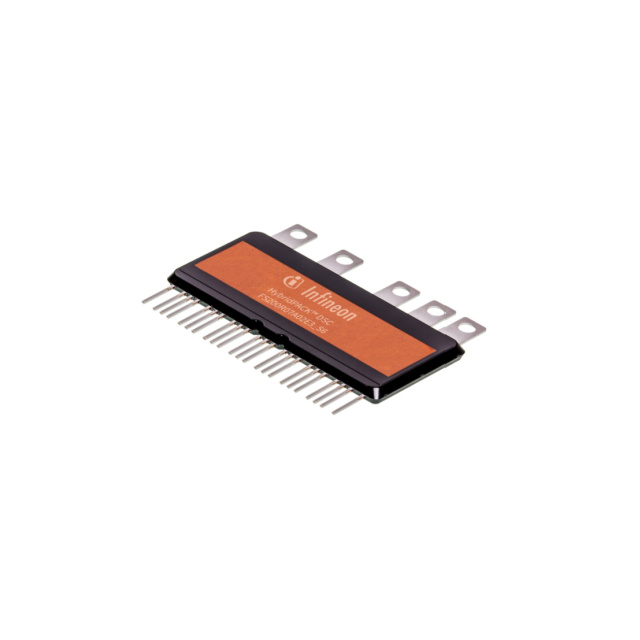

The FS200R07A02E3S6BKSA2 is a six-pack IGBT module from Infineon's HybridPACK DSC L series, designed for automotive high-power applications. It features Trench-Field-Stop technology with a collector-emitter voltage of 700 V and a continuous DC collector current of 200 A at 65°C case temperature. The module utilizes double-sided cooling to achieve a total power dissipation of 694 W and low thermal resistance. Key electrical characteristics include a typical saturation voltage of 1.45 V and integrated on-die current sensors alongside two NTC thermistors for state monitoring.
Feature Summary
- Double-sided cooling architecture for enhanced thermal performance
- Integrated on-die current sensor for short-circuit protection
- Two built-in NTC temperature sensors for intelligent control
- Low inductive design suitable for hybrid and electric vehicles
Applications
- Hybrid Electric Vehicles (HEV)
- Electric Vehicle (EV) traction inverters
- Automotive high-power drive systems
Procurement Notes
Verify the specific ordering code suffix against official documentation, as variations exist within the S6 family. Confirm RoHS compliance status and check for any automotive qualification requirements such as AQG324 before finalizing procurement specifications.
Selection Notes
Select this component for applications requiring a compact footprint with high reliability. Ensure the system design accommodates the 700 V blocking capability and 200 A continuous current rating. Verify that the mounting torque meets the specified 400-750 N range to maintain optimal thermal contact.
Part Context
This part belongs to the FS200R07A02E3_S6 product line, which represents Infineon's advanced HybridPACK DSC L packaging technology. It is engineered specifically for the demanding thermal and mechanical environments found in modern automotive power electronics.
Replacement Considerations
Direct substitutes are not explicitly listed in the provided datasheet. Evaluate other modules within the HybridPACK DSC L family or comparable 700 V/200 A six-pack configurations, ensuring pinout compatibility and thermal resistance alignment.
