FS25R12W1T7BOMA1

Overview

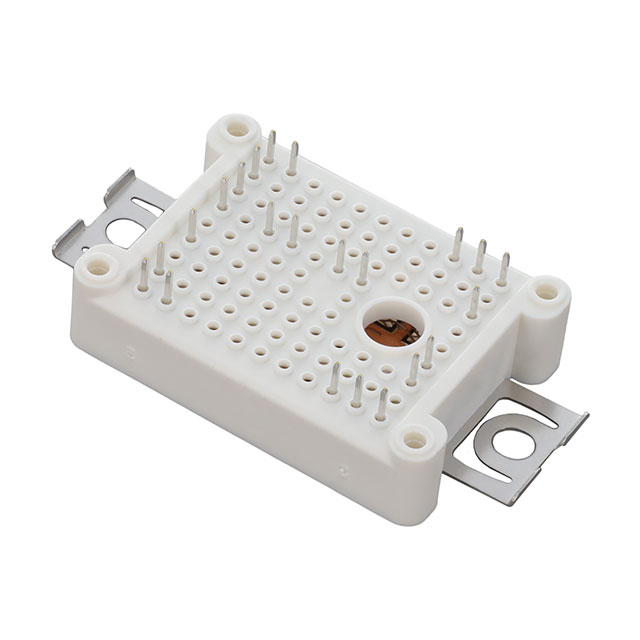

The FS25R12W1T7BOMA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage (VCES) of 1200 V and a nominal continuous DC collector current (ICDC) of 25 A at a junction temperature of 175°C. The typical collector-emitter saturation voltage (VCEsat) is 1.60 V at 25°C. The module incorporates emitter-controlled EC7 diodes with a forward voltage (VF) of 1.72 V. It includes an integrated NTC thermistor rated at 5 kΩ at 25°C for thermal monitoring. The package is EasyPACK™ 1B, weighing 24 g, with a maximum operating junction temperature of 175°C.

Feature Summary

• Integrates seventh-generation TRENCHSTOP™ IGBT7 and emitter-controlled EC7 diode technologies for optimized switching performance.
• Features solder contact technology with an Al2O3 substrate to provide low thermal resistance and high power density.
• Includes an integrated NTC thermistor for real-time junction temperature monitoring within the module.
• Provides basic insulation class isolation with a 2.5 kV AC test voltage capability.

Applications

• Air conditioning systems
• Auxiliary inverters
• Motor drives
• Servo drives
• UPS systems

Procurement Notes

Verify the specific ordering suffix BOMA1 against official documentation to confirm exact configuration details. Ensure compatibility with recommended gate drivers listed in the datasheet. Confirm that the application environment meets the industrial qualification standards defined by IEC 60747, 60749, and 60068.

Selection Notes

Select this component for applications requiring moderate switching frequencies and overload operation up to 175°C. Consider the 25 A continuous current rating and 1200 V blocking voltage when designing the power stage. Evaluate the thermal management requirements based on the specified thermal resistance values for both IGBT and diode sections.

Part Context

This module belongs to the EasyPACK™ family and utilizes the TRENCHSTOP™ IGBT7 generation. It is designed specifically for variable speed drives and industrial applications. The product is qualified for industrial use according to relevant IEC standards, ensuring reliability in demanding environments.

Replacement Considerations

Consult the official datasheet or manufacturer resources for confirmed substitute part numbers. Verify electrical parameters and pinout compatibility before considering any alternative components.
