FS380R12A6T4LBBPSA1

Overview

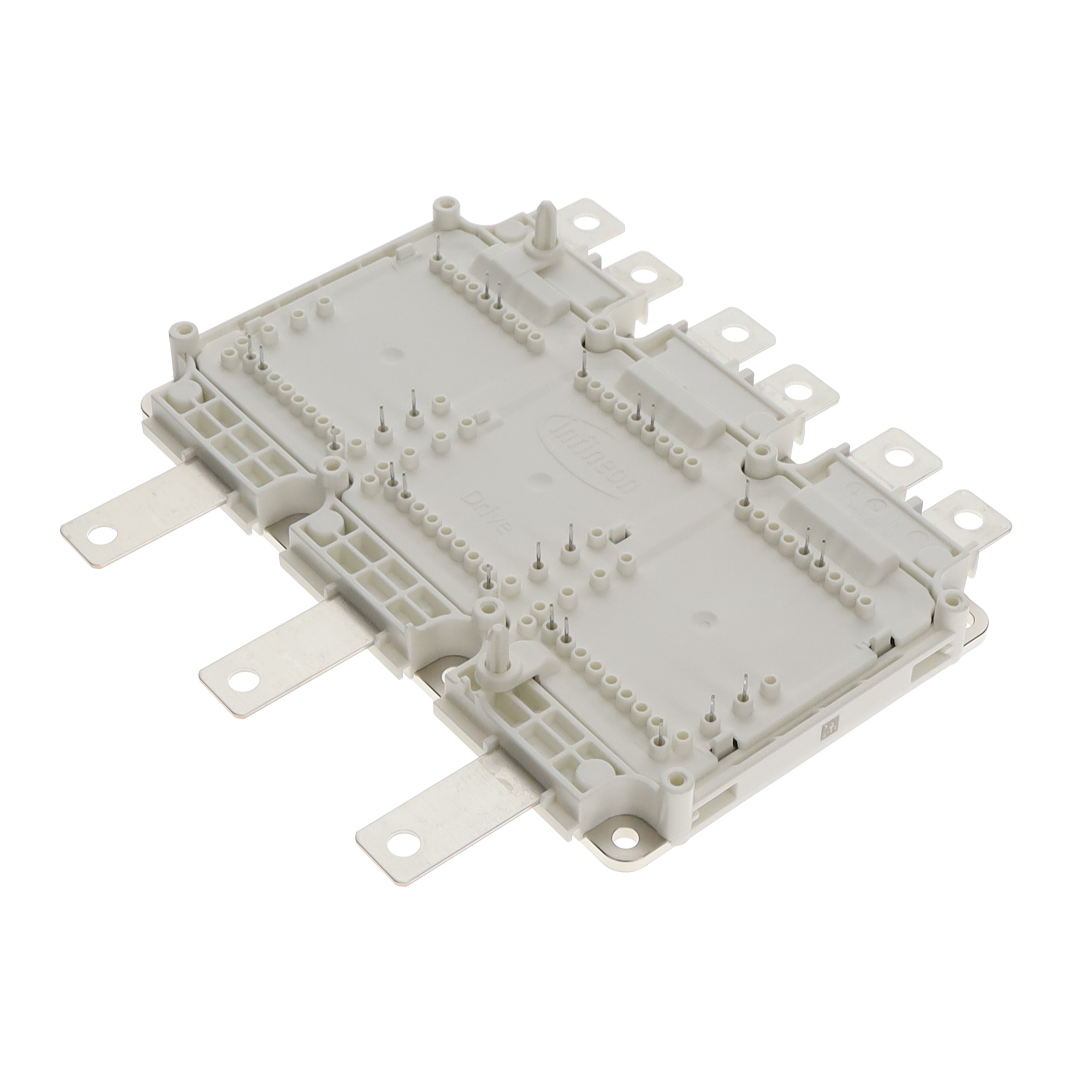

The FS380R12A6T4LB is a HybridPACK Drive six-pack power module utilizing Trench/Fieldstop IGBT4 and Emcon4 diode technology. It features a 1200 V collector-emitter voltage (VCES) and an implemented collector current of 380 A. The module incorporates a direct-cooled PinFin baseplate with high-performance Si3N4 ceramic for superior thermal characteristics. Key electrical parameters include a typical VCEsat of 1.95 V at 25°C and 380 A, and a maximum continuous DC collector current of 250 A at 175°C junction temperature. It supports a maximum operating junction temperature of 150°C and includes integrated NTC temperature sensing.

Feature Summary

• Implements Infineon's IGBT4 generation chipset combined with soft-switching Emcon4 diodes to achieve low switching losses and high short-circuit ruggedness.
• Features a direct-cooled PinFin baseplate structure paired with optimized Si3N4 ceramic material to maximize thermal performance and power density.
• Utilizes press-fit contact technology for signal terminals to eliminate selective soldering processes, thereby reducing system assembly time and increasing reliability.
• Includes mechanical guiding elements designed to support easy and precise PCB and cooler assembly processes.

Applications

• Hybrid Electrical Vehicles (H)EV traction inverters
• Electric Vehicle (EV) motor drives
• Commercial Agriculture Vehicles

Procurement Notes

Verify the specific ordering code SP002516834 against official Infineon documentation to ensure correct part identification. Confirm that the required application environment aligns with the automotive qualification standards specified in the datasheet. Ensure cooling fluid composition matches the 50% water and 50% ethylenglycol mixture referenced in thermal resistance calculations.

Selection Notes

Select this module for applications requiring a compact six-pack configuration with high power density. Consider the 1200 V blocking voltage and 380 A implemented current rating when designing the inverter circuit. Evaluate the thermal resistance values based on the specified flow rate of 10 dm³/min and the recommended cooler design guidelines provided in the assembly application notes.

Part Context

This component belongs to the HybridPACK Drive family, which provides scalable power solutions for electric vehicle traction inverters. The series utilizes various chip technologies to maintain a consistent footprint while allowing performance scaling through different thermal stacks and chipsets. This specific model represents an earlier iteration using IGBT4 technology compared to newer SiC or Fusion variants within the same package line.

Replacement Considerations
