Product Detailed Parameters
- Description：IGBT MOD 1200V 675A 2250W
- Series：EconoPACK™+ B
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Full Bridge
- Vce(on) (Max) @ Vge, Ic：2.1V @ 15V, 450A
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 150°C
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：Module
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：675 A
- Power - Max：2250 W
- Current - Collector Cutoff (Max)：3 mA
- Input Capacitance (Cies) @ Vce：28 nF @ 25 V
Download product information
Overview

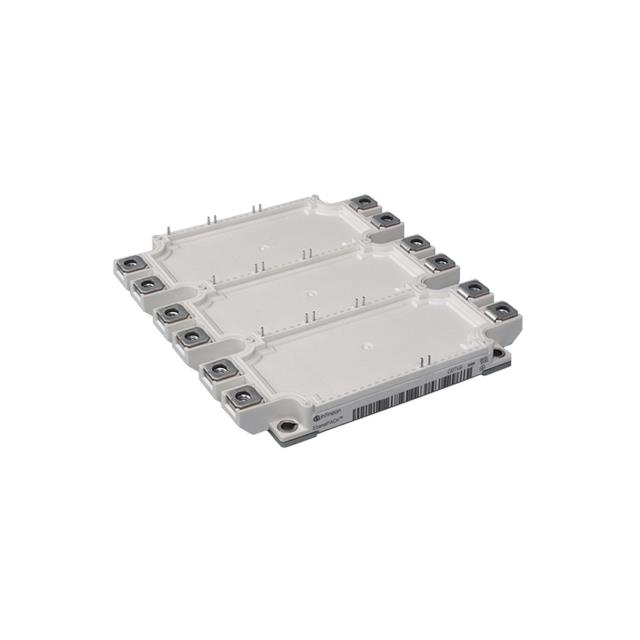

The FS450R12KE4BOSA1 is a Trench/Fieldstop IGBT4 module with an optimized Emitter Controlled Diode in the EconoPACK+ B-series. It features a 1200 V collector-emitter voltage and a continuous DC collector current of 450 A at 25°C, rising to 675 A. The module has a total power dissipation of 2250 W and operates within a junction temperature range of -40°C to 150°C. Key electrical parameters include a typical saturation voltage of 1.75 V at 25°C and a forward voltage of 1.65 V for the diode. It includes an integrated NTC thermistor rated at 5 kΩ at 25°C.
Feature Summary
- Incorporates Trench/Fieldstop IGBT4 technology for efficient switching performance.
- Features an optimized Emitter Controlled Diode to minimize reverse recovery losses.
- Includes an integrated NTC thermistor for precise thermal monitoring.
- Utilizes the EconoPACK+ B-series housing for standardized mounting.
Applications
- Industrial motor drives
- Medium-power inverters
- Uninterruptible power supplies (UPS)
- Induction heating systems
Procurement Notes
Verify the specific ordering suffix against official Infineon documentation to confirm exact configuration details. Ensure that the component matches the required technical specifications for your application before procurement. Cross-reference datasheet revision numbers to guarantee compatibility with existing designs.
Selection Notes
Select this module based on its 1200 V rating and 450 A continuous current capability. Evaluate the thermal resistance values to ensure adequate heatsinking for the intended power dissipation. Consider the internal gate resistance when designing the gate drive circuitry to optimize switching speeds and minimize electromagnetic interference.
Part Context
This component belongs to the Infineon EconoPACK+ B-series, designed for robust industrial applications. It utilizes Trench/Fieldstop IGBT4 technology combined with an optimized diode to enhance efficiency. The module integrates an NTC thermistor for accurate temperature sensing, facilitating reliable thermal management in high-power environments.
Replacement Considerations
Consult official Infineon cross-reference lists for verified substitutes. Ensure any replacement maintains identical pinout, thermal characteristics, and electrical ratings to preserve system integrity without requiring redesign.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current is 900 A for a pulse duration of 1 ms.
Does the module include thermal protection components?
Yes, the module includes an integrated NTC thermistor with a nominal resistance of 5 kΩ at 25°C for temperature monitoring.
What is the isolation test voltage of the module?
The isolation test voltage is 2.5 kV RMS at 50 Hz for one minute.
