Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY1B-1
- Series：EasyPACK™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY1B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：50 A
- Power - Max：-
- Current - Collector Cutoff (Max)：7.9 µA
- Input Capacitance (Cies) @ Vce：11.1 nF @ 25 V
Download product information
Overview

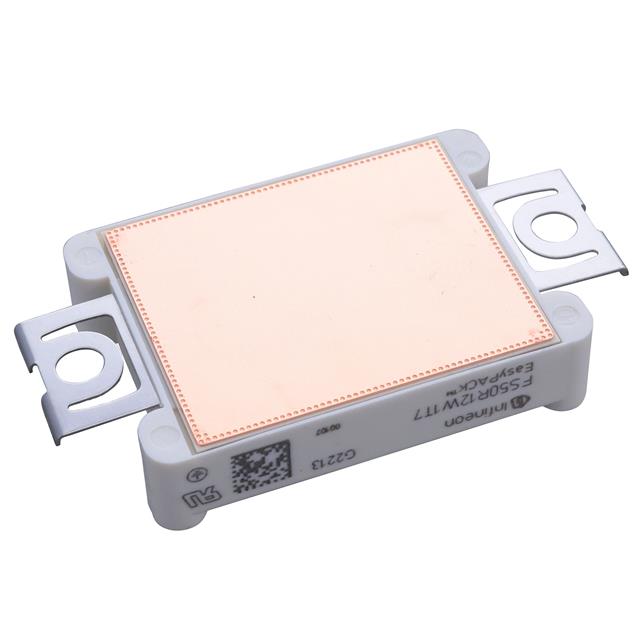

The FS50R12W1T7BOMA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 50 A at 25°C. The typical saturation voltage is 1.5 V, with a maximum operating junction temperature of 175°C. The module integrates emitter-controlled 7 diodes and an NTC thermistor for thermal monitoring. It employs EasyPACK™ packaging with Al2O3 substrate and solder contact technology, providing 2.5 kV AC insulation.
Feature Summary
- Integrates TRENCHSTOP™ IGBT7 and emitter controlled 7 diode technology for optimized switching performance.
- Includes integrated NTC thermistor for precise internal temperature monitoring.
- Features compact EasyPACK™ design with high power density and low thermal resistance.
- Provides robust electrical isolation with 2.5 kV AC insulation capability.
Applications
- Air conditioning systems
- Auxiliary inverters
- Motor drives
- Servo drives
- UPS systems
Procurement Notes
Verify the specific ordering suffix BOMA1 against the manufacturer's official documentation to confirm exact mechanical and material specifications. Ensure compatibility with recommended Infineon gate drivers as specified in the datasheet. Confirm industrial application qualification standards are met for the intended deployment environment.
Selection Notes
Select this module for applications requiring moderate switching frequencies and high efficiency in variable speed drives. Consider the 175°C overload operation capability for demanding thermal environments. Evaluate the 6-Pack configuration suitability for three-phase inverter topologies. Verify PCB mounting dimensions and screw torque requirements during the design phase.
Part Context
This component belongs to the TRENCHSTOP™ IGBT7 series, designed specifically for industrial drives and energy-efficient power conversion. It represents the seventh generation of trench technology, offering improved controllability and reduced losses compared to previous generations within the EasyPACK™ family.
Replacement Considerations
Consult official Infineon cross-reference guides for verified substitutes. Ensure any replacement maintains equivalent voltage ratings, current capabilities, and package dimensions. Verify that alternative components support the required 175°C operating temperature and industrial qualification standards.
FAQ
What is the maximum operating junction temperature?
The maximum operating junction temperature (Tvj op) is 175°C, allowing for overload operation above 150°C under specific conditions.
Does the module include thermal monitoring?
Yes, the module includes an integrated NTC thermistor with a rated resistance of 5 kΩ at 25°C for accurate temperature sensing.
What is the insulation voltage rating?
The module provides 2.5 kV AC insulation for 1 minute, based on basic insulation class 1 according to IEC 61140.
