Product Detailed Parameters
- Description：LOW POWER EASY
- Series：-
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：-
- Configuration：-
- Vce(on) (Max) @ Vge, Ic：-
- Input：-
- NTC Thermistor：-
- Operating Temperature：-
- Mounting Type：-
- Package / Case：-
- Supplier Device Package：-
- Voltage - Collector Emitter Breakdown (Max)：-
- Current - Collector (Ic) (Max)：-
- Power - Max：-
- Current - Collector Cutoff (Max)：-
- Input Capacitance (Cies) @ Vce：-
Download product information
Overview

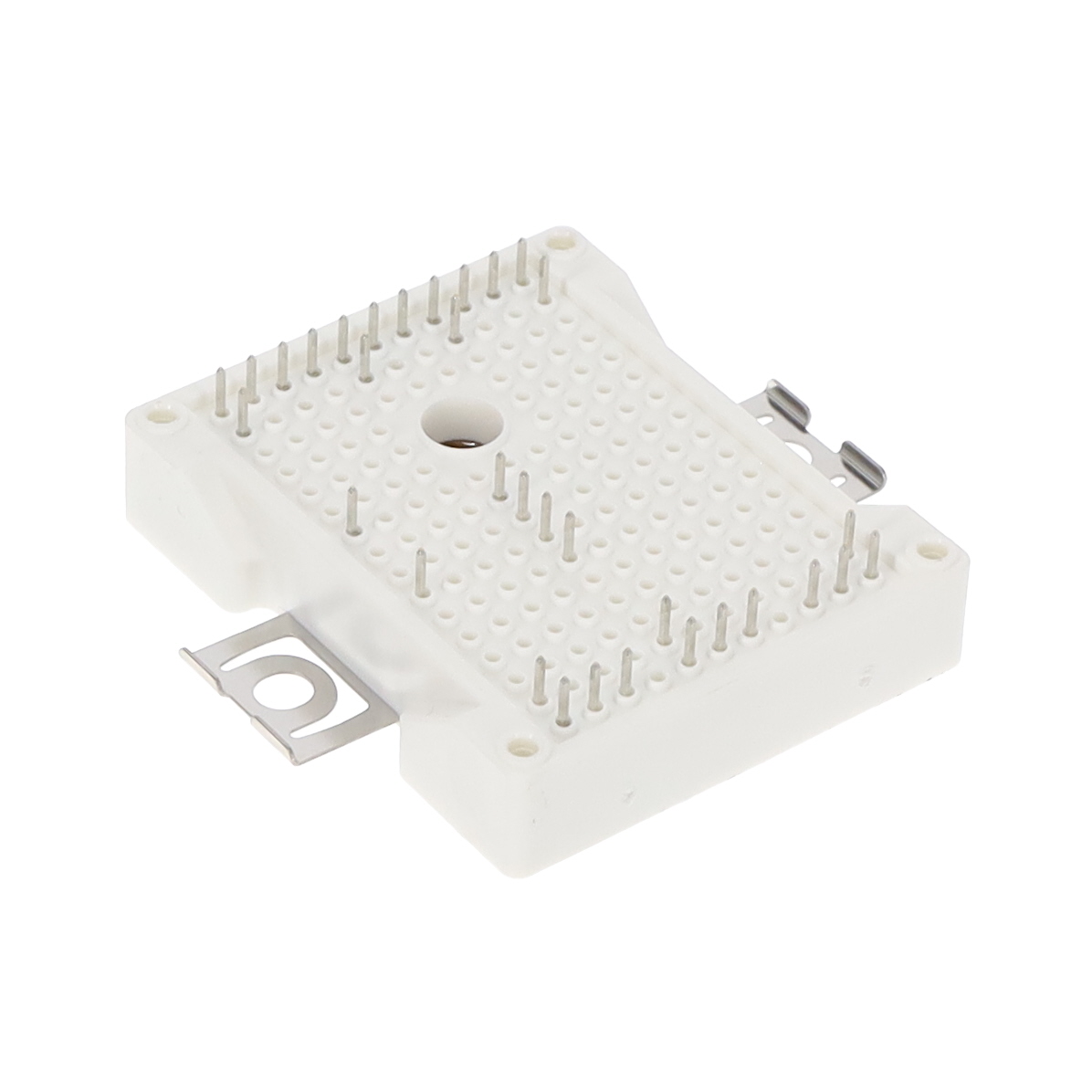

The FS50R12W2T7 is a six-pack IGBT module from Infineon's TRENCHSTOP™ IGBT7 series, housed in an EasyPACK™ package. It features a collector-emitter voltage of 1200 V and a nominal continuous DC collector current of 50 A at 175 °C junction temperature. The typical saturation voltage is 1.5 V at 25 °C, with a maximum gate-emitter voltage of ±20 V. Integrated emitter-controlled EC7 diodes provide a forward voltage of 1.72 V at 25 °C. An NTC thermistor with a rated resistance of 5 kΩ at 25 °C is included for thermal monitoring.
Feature Summary
- Utilizes micro-pattern trench technology to reduce switching losses in variable speed drives.
- Integrates emitter controlled 7 (EC7) diodes for optimized reverse recovery performance.
- Includes an embedded NTC thermistor for precise internal temperature monitoring.
- Features Al2O3 substrate insulation providing 2.5 kV AC isolation capability.
Applications
- Auxiliary inverters
- Motor drives
- UPS systems
- Air conditioning units
- Servo drives
Procurement Notes
Verify the specific ordering suffix against official documentation to confirm mechanical variations or material content compliance. Ensure that the component meets the required industrial qualification standards defined by IEC 60747, 60749, and 60068 before integration into the final design.
Selection Notes
Select this module for applications requiring high power density and efficient thermal management within moderate switching frequency ranges. Consider the 175 °C operating temperature capability and low saturation voltage when designing for high-efficiency industrial drive systems.
Part Context
This component belongs to the TRENCHSTOP™ IGBT7 family, designed specifically for variable speed drives. It combines advanced silicon technology with integrated protection features, offering improved controllability and reduced energy consumption compared to previous generations.
Replacement Considerations
Consult official substitution lists for compatible modules within the EasyPACK™ form factor. Verify electrical parameters and pinout compatibility before replacing existing designs with alternative part numbers.
FAQ
What is the maximum repetitive peak collector current?
The maximum repetitive peak collector current (ICRM) is 100 A, limited by the junction temperature.
What is the rated resistance of the integrated NTC thermistor?
The NTC thermistor has a rated resistance (R25) of 5 kΩ at a temperature of 25 °C.
What is the isolation test voltage specification?
The module supports an isolation test voltage (VISOL) of 2.5 kV RMS for 1 minute at 50 Hz.
