Product Detailed Parameters
- Description：LOW POWER EASY AG-EASY2B-711
- Series：EasyPACK™, TRENCHSTOP™
- Mfr：Infineon Technologies
- Package：Tray
- IGBT Type：Trench Field Stop
- Configuration：Three Phase Inverter
- Vce(on) (Max) @ Vge, Ic：-
- Input：Standard
- NTC Thermistor：Yes
- Operating Temperature：-40°C ~ 175°C (TJ)
- Mounting Type：Chassis Mount
- Package / Case：Module
- Supplier Device Package：AG-EASY2B
- Voltage - Collector Emitter Breakdown (Max)：1200 V
- Current - Collector (Ic) (Max)：65 A
- Power - Max：-
- Current - Collector Cutoff (Max)：13 µA
- Input Capacitance (Cies) @ Vce：15.1 nF @ 25 V
Download product information
Overview

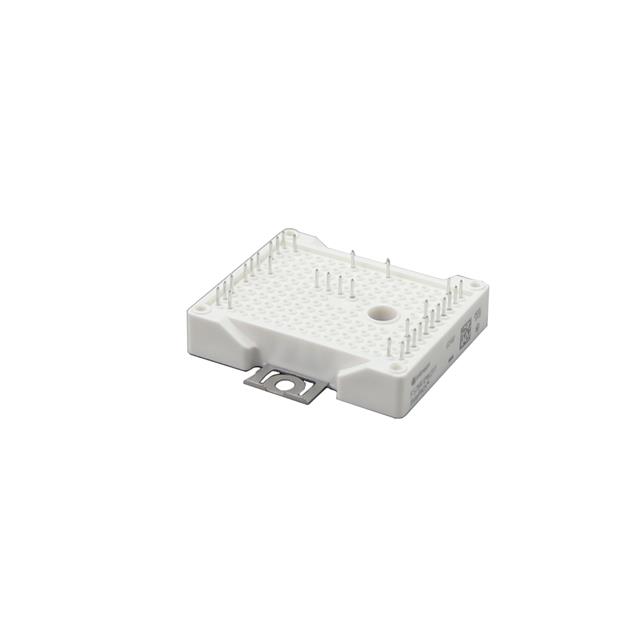

The FS75R12W2T7BPSA1 is a six-pack IGBT module from Infineon Technologies, utilizing TRENCHSTOP™ IGBT7 technology. It features a 1200 V collector-emitter voltage and a nominal continuous collector current of 75 A at 25 °C. The typical saturation voltage is 1.55 V, with a maximum operating junction temperature of 175 °C. The module integrates emitter-controlled diodes and an NTC thermistor within a compact EasyPACK™ housing.
Feature Summary
- Incorporates TRENCHSTOP™ IGBT7 technology for optimized switching performance
- Integrates an NTC thermistor for precise thermal monitoring
- Features low thermal resistance Al2O3 substrate design
- Provides high power density in a compact mechanical package
Applications
- Motor drives
- Servo drives
- Auxiliary inverters
- Air conditioning systems
- UPS systems
Procurement Notes
Verify the specific ordering suffix BPSA1 against official documentation to confirm exact terminal configuration and marking details. Ensure compatibility with recommended gate drivers listed by the manufacturer. Confirm that the application environment adheres to the specified industrial qualification standards and insulation requirements.
Selection Notes
Select this component for applications requiring high efficiency and robust overload capability up to 175 °C. Consider the integrated NTC for thermal management strategies. Evaluate the stray inductance and thermal resistance values during circuit layout to ensure optimal switching behavior and heat dissipation under peak load conditions.
Part Context
This module belongs to the EasyPACK™ series and utilizes TRENCHSTOP™ IGBT7 technology. It is designed for industrial applications and qualified according to relevant IEC standards. The product line emphasizes compact design and high power density for modern power conversion systems.
Replacement Considerations
Consult official cross-reference lists for verified substitutes. Verify pinout compatibility and electrical ratings before substitution. Ensure any replacement part meets the same industrial qualification standards and thermal characteristics.
