FT1CNDRK16.384-T3

Oscillators Overview

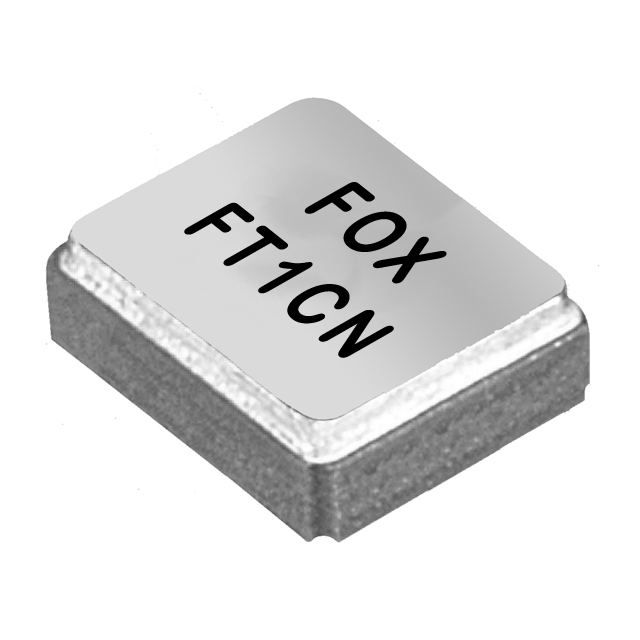

The FT1CNDRK16.384-T3 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Fox Electronics. It operates at a nominal frequency of 16.384 MHz and requires a supply voltage of 3.0 VDC, with a tolerance of ±5%. The device utilizes a CMOS output signal type and is housed in a compact surface-mount package designated as CLP SNW. This component is designed for applications requiring stable frequency generation under varying thermal conditions.

Oscillators Feature Summary

• Provides temperature-compensated frequency stability for precision timing applications
• Utilizes CMOS output interface for digital logic compatibility
• Designed for low-profile surface-mount integration

Oscillators Applications

• High-precision sampling systems
• RF communication modules
• Digital signal processing circuits

Oscillators Procurement Notes

Verify the specific ordering suffix to ensure correct voltage and packaging specifications. Confirm RoHS compliance status through official documentation. Cross-reference the manufacturer part number with authorized distributor catalogs to validate authenticity. Ensure the requested variant matches the required frequency and output drive characteristics for the target design.

Oscillators Selection Notes

Select this component when a 16.384 MHz reference is required with 3V operation. Consider the CLP SNW package dimensions for board space constraints. Evaluate thermal performance requirements against the TCXO compensation capabilities. Ensure the CMOS output swing aligns with the receiving circuit's input thresholds.

Oscillators Part Context

This oscillator belongs to the FT1CN series from Fox Electronics, which offers various frequency and voltage options. The series is characterized by small form factors suitable for portable electronics. The specific model indicates a 3V supply and a particular surface-mount footprint distinct from other series variants.

Oscillators Replacement Considerations

Direct substitutes include other FT1CN series parts with matching frequency and voltage ratings. Verify pinout compatibility before swapping. Alternative manufacturers may offer similar TCXOs but require electrical parameter validation.
