FT2MHUPM10.0-T1

Oscillators Overview

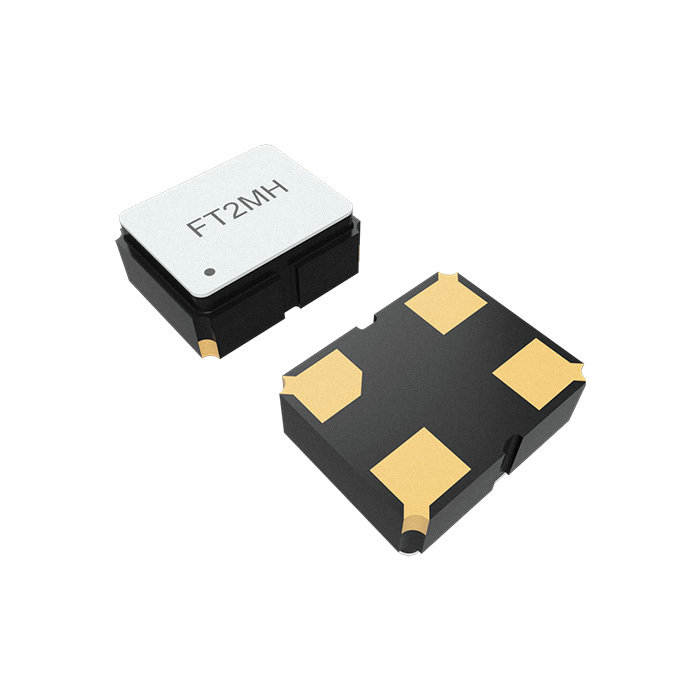

The FT2MHUPM10.0-T1 is a temperature-compensated crystal oscillator (TCXO) manufactured by Fox Electronics, designed for precision timing applications requiring stable frequency output across varying environmental conditions. This component operates at a nominal frequency of 10 MHz with a frequency stability of 2.5 ppm. It utilizes a CMOS output signal type and functions within a supply voltage range of 1.68 V to 3.63 V, featuring a standby mode for power management. The device is housed in a compact surface-mount package measuring 2.5 mm x 2 mm, suitable for space-constrained designs. It supports an operating temperature range from -40°C to ensure reliability in harsh environments.

Oscillators Feature Summary

• Temperature compensation ensures frequency stability of 2.5 ppm across the operational temperature range.
• CMOS output interface provides digital compatibility for direct integration into logic circuits.
• Low-power standby mode allows for efficient energy management when the oscillator is not actively driving loads.

Oscillators Applications

• Precision timing references in communication systems
• Clock generation for microprocessors and digital signal processors
• Test and measurement equipment requiring stable frequency sources

Oscillators Procurement Notes

Verify that the specific part number matches the required frequency tolerance and output voltage levels for your design. Confirm the package dimensions align with your PCB footprint constraints. Ensure the operating temperature range meets the environmental requirements of the final application. Cross-reference the datasheet for pinout configurations to prevent soldering errors during assembly.

Oscillators Selection Notes

Select this TCXO when high frequency stability is critical without the complexity of oven-controlled oscillators. The CMOS output simplifies interfacing with standard digital logic families. Consider the low standby current if battery life or power efficiency is a primary design constraint. The small SMD package makes it ideal for portable devices where board space is limited.

Oscillators Part Context

This component belongs to the FT2MH series of temperature-compensated crystal oscillators from Fox Electronics. The series is characterized by its compact size and robust performance in demanding environments. The FT2MHUPM10.0-T1 specifically denotes the 10 MHz variant with CMOS output and specific voltage tolerances, fitting into the broader portfolio of precision timing solutions offered by the manufacturer.

Oscillators Replacement Considerations

Consult official substitution lists for compatible alternatives with matching frequency and stability specifications. Verify pin-to-pin compatibility if replacing directly on existing PCBs. Ensure any substitute part maintains the same operating temperature range and output drive capabilities to avoid system performance degradation.
