FT3HNBPK32.0-T3

Oscillators Overview

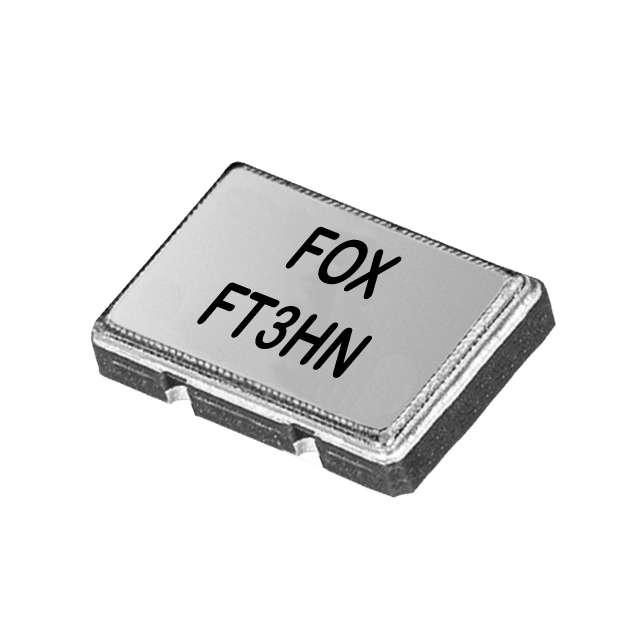

The FT3HNBPK32.0-T3 is a Temperature Compensated Crystal Oscillator (TCXO) manufactured by Fox Electronics, formerly known as the FOX923_A series. It features a compact surface-mount package measuring 3.2mm x 2.5mm with a maximum height of 1.00mm. The device operates at a nominal frequency of 32.0 MHz and supports a supply voltage range of 1.68V to 3.63V. Key electrical specifications include a frequency stability of ±2.5ppm over the operating temperature range of -30°C to +85°C. The oscillator draws a maximum supply current of 6mA and offers a standby mode with a maximum disabled current of 10µA. It utilizes CMOS output logic and is designed for low-power applications requiring stable timing references.

Oscillators Feature Summary

• Compact 3.2mm x 2.5mm surface-mount footprint optimized for space-constrained designs
• Low power consumption with 6mA active current and 10µA standby current
• High frequency stability of ±2.5ppm across industrial temperature ranges
• Wide supply voltage compatibility supporting 1.68V to 3.63V operation

Oscillators Applications

• Industrial GNSS positioning terminals
• Portable communication devices
• RF transceivers requiring stable clock sources
• Low-power embedded systems

Oscillators Procurement Notes

Verify the specific suffix codes against official Fox Electronics documentation to ensure correct voltage, stability, and temperature ratings. Confirm that the T3 packaging designation matches your assembly requirements. Cross-reference the part number with authorized distributors to guarantee authenticity and traceability. Ensure design-in compliance with RoHS and REACH standards prior to procurement.

Oscillators Selection Notes

Select this component when a small form factor TCXO is required for industrial environments. The ±2.5ppm stability suits general-purpose synchronization tasks. Evaluate the 3.2x2.5mm package against board space constraints. Consider the 6mA current draw for battery-operated systems. Verify that the -30°C to +85°C range meets the application's thermal profile.

Oscillators Part Context

This model belongs to the FT3AN/FOX923_A family of analog TCXOs from Fox Electronics. It represents a legacy product line often referenced in older hardware designs. The series is characterized by its balance between size, power, and precision, making it a common choice for upgrading existing designs or selecting components for new industrial IoT projects.

Oscillators Replacement Considerations

Direct substitutes within the same Fox Electronics family may require matching the stability and temperature suffixes. Check for updated part numbers if the original FOX923_A designation is discontinued. Ensure any replacement maintains the 3.2x2.5mm footprint and CMOS output type for pin compatibility.
