FY7HCJE27.0-T1

Oscillators Overview

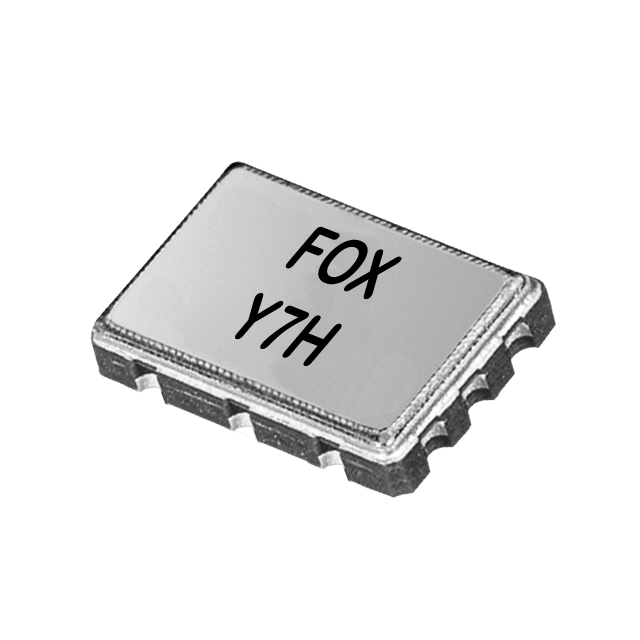

The Fox Electronics FY7HCJE27.0-T1 is a Voltage-Controlled Crystal Oscillator (VCXO) operating at a nominal frequency of 27MHz. It utilizes HCMOS output logic and requires a supply voltage of 3.3V. The component is designed for surface mount installation in a compact package, suitable for integration into space-constrained electronic circuits requiring precise clock generation with voltage-controlled tuning capabilities.

Oscillators Feature Summary

• Voltage-controlled crystal oscillator architecture enabling frequency adjustment
• HCMOS digital output interface for standard logic compatibility
• Surface mount device construction for automated PCB assembly

Oscillators Applications

• Clock signal generation in communication systems
• Frequency synthesis circuits
• Data transmission equipment requiring tunable reference clocks

Oscillators Procurement Notes

Verify the specific part number FXO-HC726R-27 or FXO-HC736R-27 against official Fox Electronics documentation to confirm if they represent equivalent or updated revisions of the FY7HCJE27.0-T1 series. Ensure that the required voltage control range and load capacitance specifications match the target application design before procurement. Cross-reference datasheet parameters to avoid functional mismatches.

Oscillators Selection Notes

Select this component when a tunable 27MHz clock source is required within a 3.3V logic system. The HCMOS output ensures direct interfacing with standard digital inputs without additional level shifting. Consider the physical dimensions and thermal operating range (-40°C to +85°C) to ensure compatibility with the host board layout and environmental conditions.

Oscillators Part Context

This model belongs to the Fox Electronics VCXO family, specifically designed for applications needing frequency agility. Unlike fixed-frequency oscillators, this variant allows for slight frequency deviations via an external control voltage, making it distinct from standard crystal oscillators in the same product line.

Oscillators Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided data. Verify compatibility with alternative VCXOs by matching the 27MHz frequency, 3.3V supply, HCMOS output, and SMD package dimensions.
