G30H100CTFW

$0.82

Description：DIODE ARR SCHOTTKY 100V ITO220AB
Series：-

SKU:8a5f70e4db1e Category: Diode Arrays Brand: Diodes Incorporated

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

G30H100CTFW is listed in the Diode Arrays range at ChipApex. The manufacturer field lists Diodes Incorporated. Its product description is DIODE ARR SCHOTTKY 100V ITO220AB. Review the specifications below when checking this part for your BOM.

Diode Arrays specifications for G30H100CTFW

Description：DIODE ARR SCHOTTKY 100V ITO220AB
Series：-
Mfr：Diodes Incorporated
Package：Tube
Diode Configuration：1 Pair Common Cathode
Technology：Schottky
Voltage - DC Reverse (Vr) (Max)：100 V
Current - Average Rectified (Io) (per Diode)：30A
Voltage - Forward (Vf) (Max) @ If：790 mV @ 15 A
Speed：Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)：-
Current - Reverse Leakage @ Vr：5 µA @ 100 V
Operating Temperature - Junction：-55°C ~ 175°C
Mounting Type：Through Hole

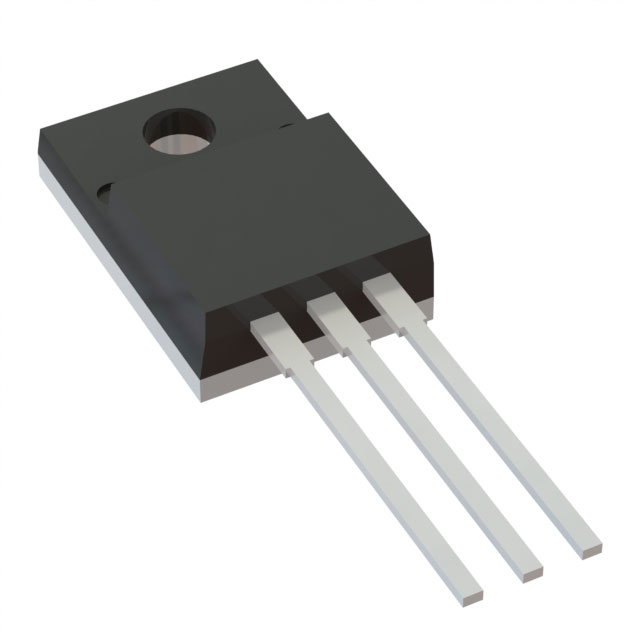

Package / Case：TO-220-3 Full Pack, Isolated Tab
Supplier Device Package：ITO-220AB
Grade：Automotive
Qualification：AEC-Q101

Diode Arrays datasheet and documents for G30H100CTFW

G30H100CTFW

Diode Arrays Overview

The G30H100CTFW is a Trench Schottky Rectifier manufactured by Diodes Incorporated, featuring a maximum repetitive peak reverse voltage of 100 V and a maximum average rectified forward current of 30 A at a case temperature of 70°C. It utilizes an ITO-220(S)AB package with a typical junction-to-case thermal resistance of 5 °C/W. The device supports an operating junction temperature range from -55°C to +175°C and includes a non-repetitive peak reverse current rating of 3 A at 2 µs.

Diode Arrays Feature Summary

High junction temperature capability for robust operation in demanding thermal environments
Negligible switching losses due to Trench Schottky technology
Qualification according to AEC-Q101 Rev_D standards

Diode Arrays Applications

High frequency miniature switch mode adaptors
On-board DC-DC converters
High frequency inverters

Diode Arrays Procurement Notes

Verify the specific ordering suffix against official documentation to confirm packaging details. Confirm that the component meets all applicable RoHS directives and environmental compliance requirements relevant to your region before finalizing procurement specifications.

Diode Arrays Selection Notes

Select this component when designing circuits requiring high-frequency rectification with minimal switching losses. Ensure the thermal management solution can maintain the case temperature within limits to support the rated 30 A forward current. Verify compatibility with AEC-Q101 standards if automotive applications are intended.

Diode Arrays Part Context

This part belongs to the Trench Schottky Rectifier series from Diodes Incorporated, designed for efficiency in power conversion. It represents a generation of devices optimized for low leakage current and forward voltage drop trade-offs, suitable for modern compact power supply designs.

Diode Arrays Replacement Considerations

Consult official substitution guides for verified alternatives. Generic replacements may not match the specific thermal characteristics or AEC-Q101 qualification status required for critical applications.
