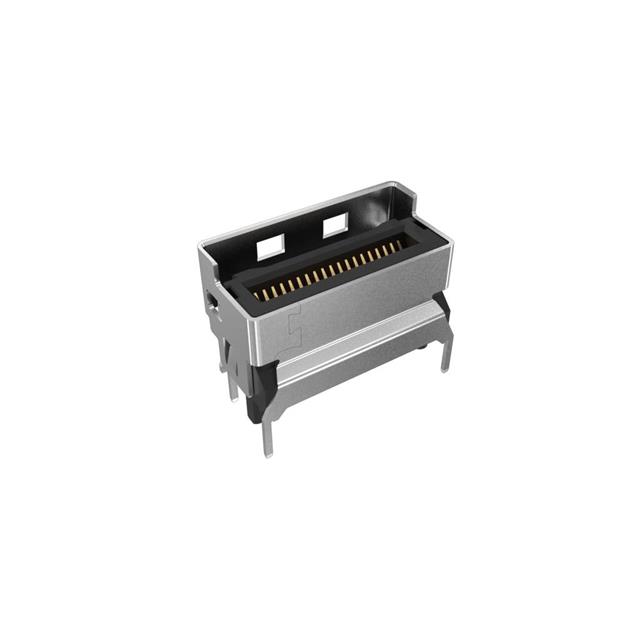

G97V21332HR is listed in the Edgeboard Connectors range at ChipApex. The manufacturer field lists Amphenol ICC (Commercial Products). Its product description is CONN EDGE DUAL FMALE 38POS 0.024. Review the specifications below when checking this part for your BOM.
Edgeboard Connectors specifications for G97V21332HR
- Description：CONN EDGE DUAL FMALE 38POS 0.024
- Series：Mini Cool Edge 0.60mm
- Mfr：Amphenol ICC (Commercial Products)
- Package：Cut Tape (CT),Tray
- Card Type：Non Specified - Dual Edge
- Gender：Female
- Number of Positions/Bay/Row：19
- Number of Positions：38
- Card Thickness：0.062" (1.57mm)
- Number of Rows：2
- Pitch：0.024" (0.60mm)
- Read Out：Dual
- Features：Board Guide, Pick and Place, Solder Retention
- Mounting Type：Surface Mount
- Termination：Solder
- Contact Material：Copper Alloy
- Contact Finish：Gold
- Contact Finish Thickness：30.0µin (0.76µm)
- Contact Type：Cantilever
- Color：Black
- Flange Feature：-
- Operating Temperature：-40°C ~ 85°C
Edgeboard Connectors datasheet and documents for G97V21332HR
Edgeboard Connectors Overview
The G97V21332HR is a Mini Cool Edge IO series connector featuring a right-angle surface mount design with 38 positions. It utilizes an 85-ohm impedance specification and offers a contact finish of 30 microinches gold thickness. The component supports high-speed 64Gb/s PAM4 data rates for next-generation servers and storage applications. It includes board guide features, pick-and-place compatibility, and solder retention mechanisms to ensure reliable assembly.
Edgeboard Connectors Feature Summary
- Supports high-speed 64Gb/s PAM4 signal transmission for advanced computing environments
- Incorporates 1mm pitch geometry with high-speed signal pins for direct attachment
- Features integrated board guides and solder retention for precise surface mount placement
Edgeboard Connectors Applications
- Next-generation server infrastructure interconnects
- High-performance storage system backplanes
- Advanced computing hardware edge connections
Edgeboard Connectors Procurement Notes
Verify the specific ordering suffix against official Amphenol documentation to confirm mechanical orientation and termination details. Ensure that the selected variant matches the required PCB mounting style and pin count specifications for the target application design.
Edgeboard Connectors Selection Notes
Select this component when designing systems requiring high-density, right-angle edge card connections with established impedance control. Consider the 38-position configuration and 1mm pitch constraints relative to the host board layout and mating card dimensions during the initial schematic capture phase.
Edgeboard Connectors Part Context
This part belongs to the Mini Cool Edge IO family, engineered for compact, high-speed I/O interfaces. It represents a specialized solution within the broader PCI Express and PCI connector portfolio, focusing on miniaturization while maintaining signal integrity for demanding digital applications.
Edgeboard Connectors Replacement Considerations
Consult official cross-reference lists for verified substitutes. Generic equivalents may not match the specific 85-ohm impedance or 64Gb/s PAM4 performance requirements inherent to this Mini Cool Edge IO series component.
