GB2X100MPS12-227

Diode Arrays Overview

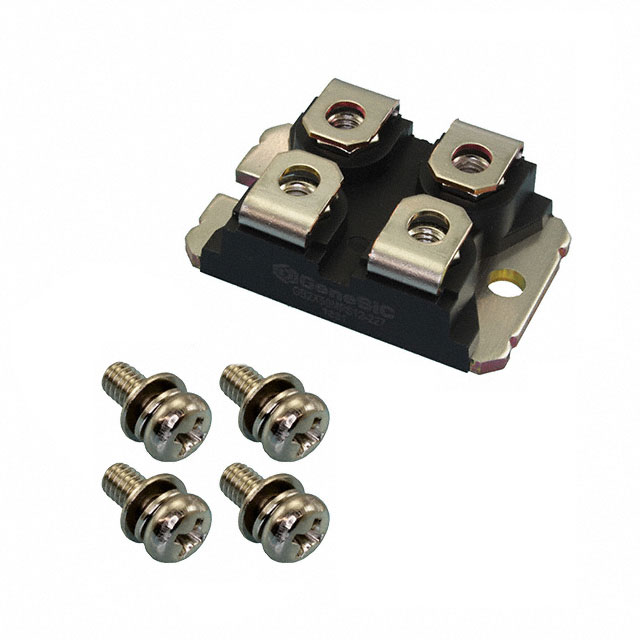

The GB2X100MPS12-227 is a dual silicon carbide Schottky MPS diode rated for 1200V repetitive peak reverse voltage and 200A continuous forward current per device. It features a low thermal resistance of 0.3°C/W junction-to-case, enabling high power density designs. The component operates within a temperature range of -55°C to 175°C and includes an isolated base with 3000V RMS isolation voltage. Packaged in SOT-227, it offers zero reverse recovery current and positive temperature coefficient characteristics.

Diode Arrays Feature Summary

• Zero reverse recovery current ensures minimal switching losses and negligible ringing patterns during turn-off.
• Positive temperature coefficient of forward voltage facilitates easy parallel operation without the risk of thermal runaway.
• High dV/dt ruggedness up to 200 V/ns provides robust performance against fast transient voltage changes.

Diode Arrays Applications

• EV Fast Chargers
• Solar Inverters
• Motor Drives
• Uninterruptible Power Supply (UPS)
• Pulsed Power Systems

Diode Arrays Procurement Notes

Verify the specific manufacturing lot date code against project timelines, as production cycles may vary. Confirm compliance documentation requirements, including RoHS and REACH declarations, prior to finalizing orders. Ensure mounting hardware specifications match the required torque values for M4 screws and heatsink interfaces to maintain optimal thermal performance and mechanical stability.

Diode Arrays Selection Notes

Select this component for applications requiring high efficiency at elevated temperatures due to its low forward voltage characteristics. Consider the 200A per device rating when designing thermal management systems, utilizing the provided derating curves for accurate power dissipation calculations. The SOT-227 package allows for screw-mount installation, simplifying integration into existing cooling infrastructure compared to surface-mount alternatives.

Diode Arrays Part Context

This part belongs to the SiC Schottky MPS series from GeneSiC Semiconductor, designed for high-power conversion systems. It utilizes silicon carbide substrate technology to achieve superior figure of merit compared to traditional silicon devices. The dual configuration supports bridge or half-bridge topologies commonly found in industrial and automotive power electronics.

Diode Arrays Replacement Considerations

Direct pin-compatible replacements are not explicitly listed in official documentation. Evaluate alternative high-current SiC diodes based on matching voltage ratings, thermal resistance, and package dimensions. Verify that any substitute maintains similar switching characteristics and avalanche energy ratings to ensure circuit reliability.

Diode Arrays FAQ

What is the maximum non-repetitive avalanche energy rating?

The non-repetitive avalanche energy rating is 1797 mJ per leg under conditions of L = 0.4 mH and I = 100 A.

How does the forward voltage behave with temperature?

The device exhibits a positive temperature coefficient for forward voltage, which aids in stable parallel operation by preventing current hogging.

Is the base electrically isolated?

Yes, the SOT-227 package features an isolated base with an isolation voltage of 3000V RMS for 1 second.
