GBJA1510_T0_00301

Overview

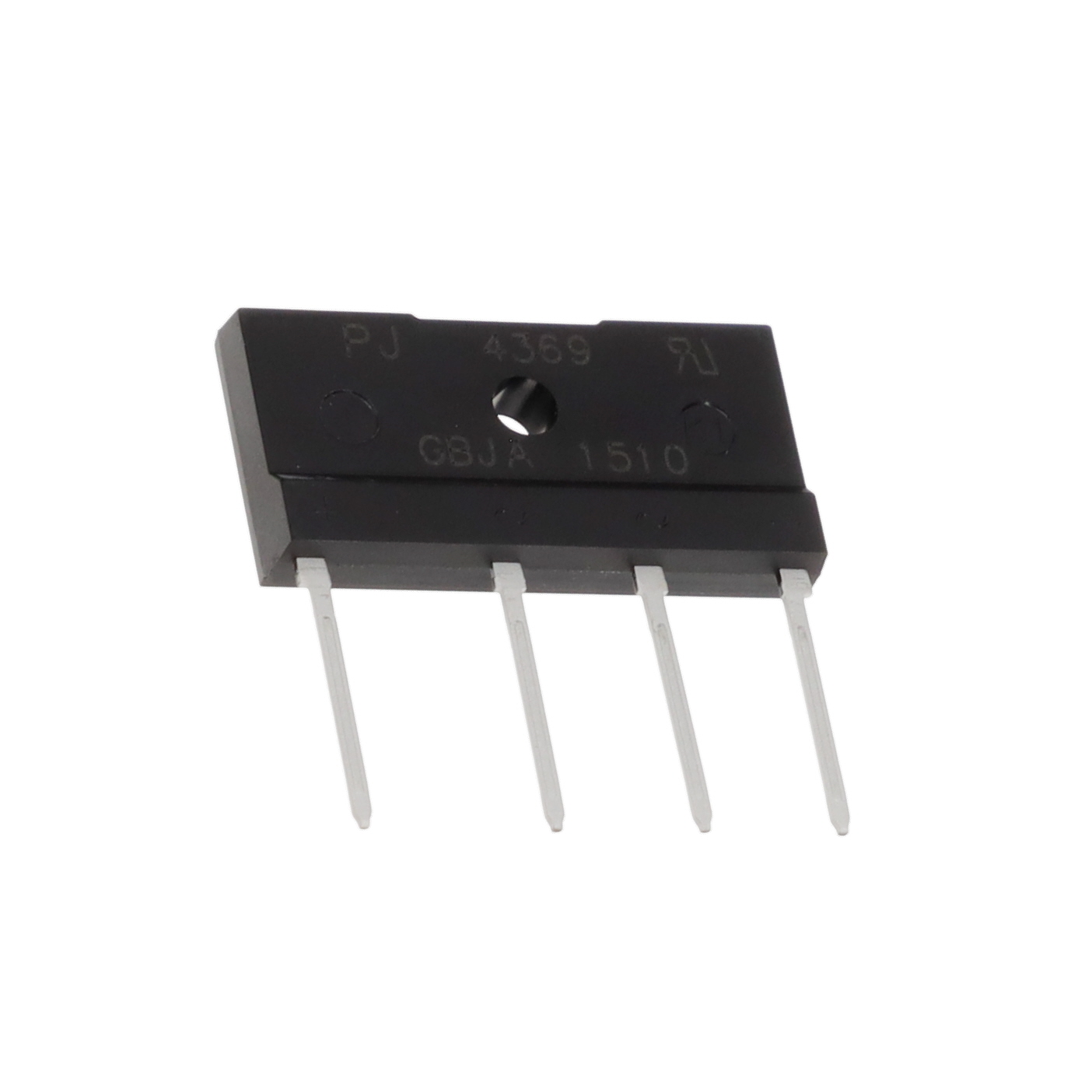

The GBJA1510 is a glass passivated low profile bridge rectifier manufactured by Panjit International Inc. It features a GBJA package with a maximum repetitive peak reverse voltage (VRRM) of 1000 V and a maximum average forward current (IF(AV)) of 15 A. The device supports a peak forward surge current (IFSM) of 240 A at 8.3 ms under standard conditions. Electrical characteristics include a maximum forward voltage (VF) of 1.0 V at 7.5 A and a typical junction capacitance (CJ) of 83 pF. Thermal resistance values are specified as RθJA at 10 °C/W, RθJL at 3 °C/W, and RθJC at 1.5 °C/W. The operating junction temperature range extends from -55 to 150 °C.

Feature Summary

• Glass passivated chip junction for enhanced reliability
• Thin single in-line package design suitable for space-constrained applications
• High surge current capability for robust performance

Applications

• Slim adapter power supplies
• Game console power systems
• Television power units

Procurement Notes

Verify the specific ordering suffix T0_00301 against official Panjit documentation to confirm packaging details such as tube quantity. Ensure compliance with UL 94 V-0 flammability ratings and RoHS standards during procurement. Confirm terminal solderability meets J-STD-002 and JESD22-B102 requirements before finalizing orders.

Selection Notes

Select this component for applications requiring high voltage isolation and moderate current handling within a low-profile form factor. Consider thermal management strategies given the specified thermal resistance values when designing heatsink interfaces. Evaluate derating curves for forward current based on expected case temperatures to ensure safe operation within the 150 °C junction limit.

Part Context

This part belongs to the GBJA series of glass passivated bridge rectifiers. The series utilizes a thin single in-line package structure designed for surface mount technology. The manufacturing process emphasizes low profile dimensions while maintaining high surge current capabilities and mechanical robustness through molded compound construction.

Replacement Considerations

Consult official manufacturer substitution lists for verified equivalents. Generic replacements must match the 1000 V rating, 15 A current capacity, and GBJA package footprint. Verify that alternative components meet identical thermal and electrical specifications.

FAQ

What is the maximum DC blocking voltage?

The maximum DC blocking voltage is 1000 V.

How does the peak forward surge current vary with temperature?

At 25 °C, the IFSM is 240 A for an 8.3 ms pulse. At 125 °C, it decreases to 192 A under the same conditions.

What is the typical junction capacitance?

The typical junction capacitance is 83 pF, measured at 1 MHz with an applied reverse voltage of 4 V.
