Overview

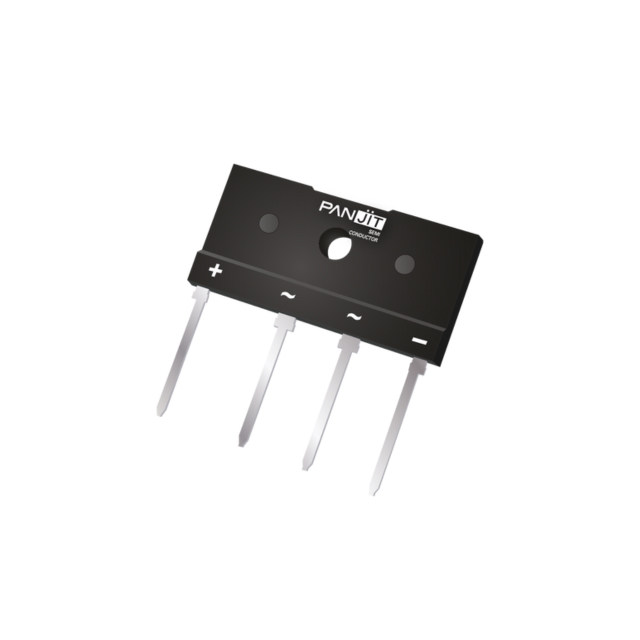

The GBJA2510 is a glass passivated low profile bridge rectifier manufactured by Panjit International Inc. It features a GBJA package with a maximum repetitive peak reverse voltage (VRRM) of 1000 V and a maximum average forward current (IF(AV)) of 25 A. The device supports a peak forward surge current (IFSM) of 360 A at 8.3 ms under rated load conditions at 25 °C. Electrical characteristics include a maximum forward voltage (VF) of 1.0 V at 12.5 A and a typical junction capacitance (CJ) of 116 pF measured at 1 MHz. The component operates within a temperature range of -55 °C to 150 °C, with a thermal resistance (RθJA) of 10 °C/W.

Feature Summary

• Glass passivated chip junction for enhanced reliability
• Thin single in-line package design suitable for space-constrained applications
• High surge current capability for robust performance

Applications

• Slim adapter power supplies
• Game console power units
• Television power circuits

Procurement Notes

Verify the specific ordering suffix T0_00301 against official Panjit documentation to confirm packaging details such as tube quantity. Ensure compliance with RoHS and halogen-free requirements. Confirm that the application environment does not involve life-saving or high-reliability equipment, as these products are not authorized for such uses. Request lot numbers for tracking purposes when necessary.

Selection Notes

Select this component for AC-to-DC conversion in compact power adapters requiring 1000 V blocking voltage and 25 A continuous current. Consider the thermal resistance values when designing heatsinking solutions. Verify that the operating junction temperature remains within the specified -55 °C to 150 °C range during full load operation.

Part Context

This part belongs to the GBJA series of low profile bridge rectifiers from Panjit International Inc. The series utilizes glass passivation technology to protect the silicon junctions. The GBJA package provides a compact form factor compared to standard bridge rectifiers, making it suitable for modern electronic devices with strict spatial limitations.

Replacement Considerations

Consult official datasheets for alternative bridge rectifiers with matching 1000 V and 25 A ratings. Verify pinout compatibility and physical dimensions before substitution. Ensure replacement components meet the same thermal and electrical specifications.
